1444-24CWW
ActiveHammond Manufacturing
CHASSIS ALUM NAT 11.93"LX7.93"W
Deep-Dive with AI
Search across all available documentation for this part.
1444-24CWW
ActiveHammond Manufacturing
CHASSIS ALUM NAT 11.93"LX7.93"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1444-24CWW | 1444 Series |
|---|---|---|
| Area (L x W) | 610 cm˛ | 102 - 1645 cm˛ |
| Area (L x W) | 94.5 in˛ | 15.8 - 255 in˛ |
| Area (L x W) | - | 35 - 289 in² |
| Area (L x W) | - | 226 - 1865 cm² |
| Area (L x W) | - | 36 in² |
| Area (L x W) | - | 155 - 903 cm² |
| Area (L x W) | - | 24 - 136 in² |
| Area (L x W) | - | 167 in² |
| Area (L x W) | - | 140 in² |
| Color | Natural | Natural |
| Container Type | Chassis | Chassis |
| Design | Open End(s) | Open End(s) |
| Features | Walnut Side Panels | Hardware not Provided, Walnut Side Panels |
| Height [z] | 2.928 in | 1 - 101.6 in |
| Height [z] | 74.37 mm | 25.4 - 152.4 mm |
| Material | Aluminum, Wood, Metal | Metal, Aluminum, Wood |
| Size / Dimension | - | 4 - 17 in |
| Size / Dimension | - | 3.5 - 228.6 in |
| Size / Dimension | - | 101.6 - 152.4 mm |
| Size / Dimension | - | 254 - 304.8 mm |
| Size / Dimension [x] | 302.97 mm | 101.6 - 431.8 mm |
| Size / Dimension [x] | 11.928 " | 11.928 - 17 " |
| Size / Dimension [y] | 201.37 mm | 88.89 - 431.8 mm |
| Size / Dimension [y] | 7.928 " | 6 - 7.928 " |
| Thickness | 1.3 mm | 1.02 - 1.3 mm |
| Thickness | 0.051 " | 0.04 - 0.051 in |
| Weight | - | 0.053 - 2.1 lb |
| Weight | - | 24.04 - 952.5 g |
1444 Series
CHASSIS ALUM NATURAL 12"L X 8"W
| Part | Design | Material | Color | Area (L x W) | Area (L x W) | Thickness | Thickness | Height [z] | Height [z] | Weight | Weight | Container Type | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Area (L x W) [custom] | Area (L x W) [custom] | Area (L x W) | Area (L x W) [custom] | Area (L x W) [custom] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Area (L x W) [x] | Size / Dimension | Area (L x W) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1444-22 | Open End(s) | Aluminum, Metal | Natural | 96 in˛ | 619 cm˛ | 0.04 in | 1.02 mm | 50.8 mm | 2 in | 0.894 lb | 405.51 g | Chassis | Hardware not Provided | 12 in | 8 in | 304.8 mm | 203.2 mm | |||||||||||
Hammond Manufacturing 1444-17135 | Open End(s) | Aluminum, Metal | Natural | 221 in² | 1426 cm² | 0.051 " | 1.3 mm | 127 mm | 5 in | Chassis | Hardware not Provided | 17 in | 13 in | 431.8 mm | 330.2 mm | |||||||||||||
Hammond Manufacturing 1444-1593 | Open End(s) | Aluminum, Metal | Natural | 135 in² | 871 cm² | 0.051 " | 1.3 mm | 76.2 mm | 3 in | Chassis | Hardware not Provided | 15 in | 228.6 mm | 381 mm | 228.6 mm | |||||||||||||
Hammond Manufacturing 1444-17143 | Open End(s) | Aluminum, Metal | Natural | 0.051 " | 1.3 mm | 76.2 mm | 3 in | Chassis | Hardware not Provided | 17 in | 14 in | 431.8 mm | 355.6 mm | 238 in² | 1535 cm² | |||||||||||||
Hammond Manufacturing 1444-17134 | Open End(s) | Aluminum, Metal | Natural | 221 in² | 1426 cm² | 0.051 " | 1.3 mm | 101.6 mm | 101.6 mm | Chassis | Hardware not Provided | 17 in | 13 in | 431.8 mm | 330.2 mm | |||||||||||||
Hammond Manufacturing 1444-84515 | Open End(s) | Aluminum, Metal | Natural | 232 cm² | 0.04 in | 1.02 mm | 38.1 mm | 1.5 in | Chassis | Hardware not Provided | 8 " | 4.5 in | 203.2 mm | 114.3 mm | 36 in² | |||||||||||||
Hammond Manufacturing 1444-972 | Open End(s) | Aluminum, Metal | Natural | 62.9 in˛ | 406 cm˛ | 0.04 in | 1.02 mm | 50.8 mm | 2 in | Chassis | Hardware not Provided | 9 in | 7 in | 228.6 mm | 177.8 mm | |||||||||||||
Hammond Manufacturing 1444-95525 | Open End(s) | Aluminum, Metal | Natural | 47.4 in˛ | 306 cm˛ | 0.04 in | 1.02 mm | 63.5 mm | 2.5 in | Chassis | Hardware not Provided | 9.5 " | 5 " | 241.3 mm | 127 mm | |||||||||||||
Hammond Manufacturing 1444-12123 | Open End(s) | Aluminum, Metal | Natural | 0.051 " | 1.3 mm | 76.2 mm | 3 in | Chassis | Hardware not Provided | 12 in | 12 " | 304.8 mm | 304.8 mm | |||||||||||||||
Hammond Manufacturing 1444-6 | Open End(s) | Aluminum, Metal | Natural | 16 in˛ | 103 cm˛ | 0.04 in | 1.02 mm | 50.8 mm | 2 in | 0.213 lb | 96.62 g | Chassis | Hardware not Provided | 4 in | 4 " | 101.6 mm | 101.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.95 | |
| 5 | $ 109.33 | |||
| 10 | $ 102.94 | |||
Description
General part information
1444 Series

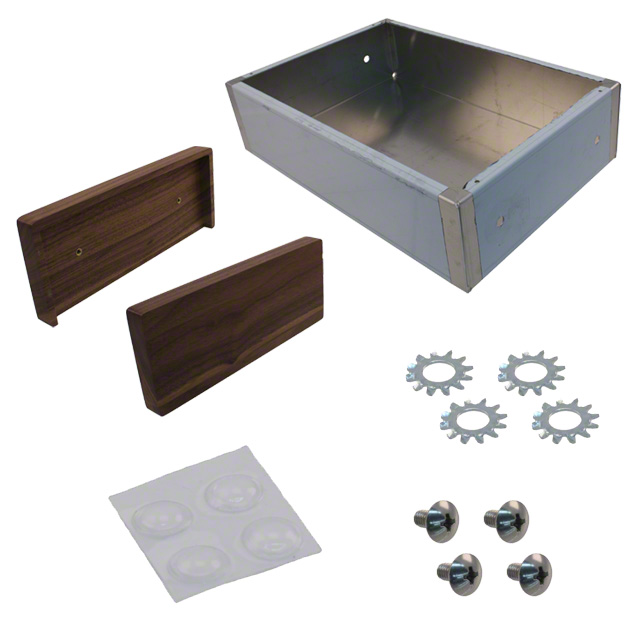

Chassis Metal, Aluminum; Wood Natural Open End(s) 11.928" L x 7.928" W (302.97mm x 201.37mm) X 2.928" (74.37mm)
