1444-972

Active

Hammond Manufacturing

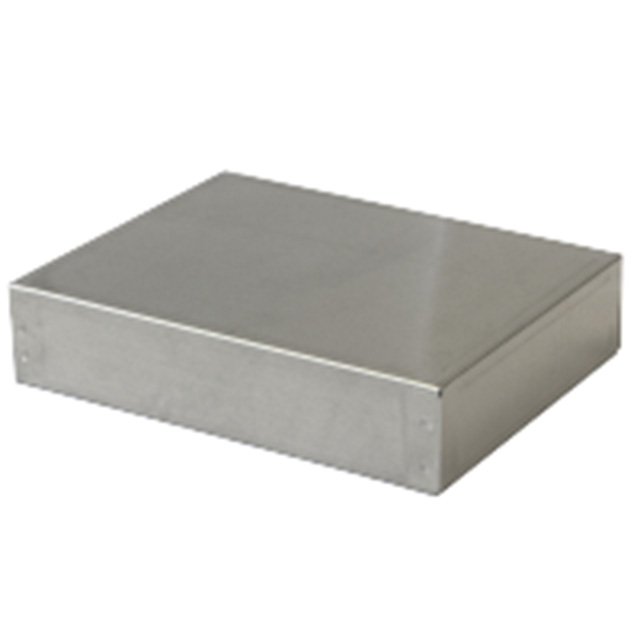

CHASSIS ALUM NATURAL 9"L X 7"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1434, 1444 Series 1444 Series

1444-972

Active

Hammond Manufacturing

CHASSIS ALUM NATURAL 9"L X 7"W

Deep-Dive with AI

Documents1434, 1444 Series 1444 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1444-972	1444 Series

Area (L x W)	406 cm˛	102 - 1645 cm˛
Area (L x W)	62.9 in˛	15.8 - 255 in˛
Area (L x W)	-	35 - 289 in²
Area (L x W)	-	226 - 1865 cm²
Area (L x W)	-	36 in²
Area (L x W)	-	155 - 903 cm²
Area (L x W)	-	24 - 136 in²
Area (L x W)	-	167 in²
Area (L x W)	-	140 in²
Color	Natural	Natural
Container Type	Chassis	Chassis
Design	Open End(s)	Open End(s)
Features	Hardware not Provided	Hardware not Provided, Walnut Side Panels
Height [z]	50.8 mm	25.4 - 152.4 mm
Height [z]	2 in	1 - 101.6 in
Material	Metal, Aluminum	Metal, Aluminum, Wood
Size / Dimension	-	101.6 - 152.4 mm
Size / Dimension	-	6 - 7.928 "
Size / Dimension	-	11.928 - 17 "
Size / Dimension	-	254 - 304.8 mm
Size / Dimension [x]	9 in	4 - 17 in
Size / Dimension [x]	228.6 mm	101.6 - 431.8 mm
Size / Dimension [y]	177.8 mm	88.89 - 431.8 mm
Size / Dimension [y]	7 in	3.5 - 228.6 in
Thickness	0.04 in	0.04 - 0.051 in
Thickness	1.02 mm	1.02 - 1.3 mm
Weight	-	0.053 - 2.1 lb
Weight	-	24.04 - 952.5 g

1444 Series

CHASSIS ALUM NATURAL 12"L X 8"W

Part	Design	Material	Color	Area (L x W)	Area (L x W)	Thickness	Thickness	Height [z]	Height [z]	Weight	Weight	Container Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)
Hammond Manufacturing 1444-22	Open End(s)	Aluminum, Metal	Natural	96 in˛	619 cm˛	0.04 in	1.02 mm	50.8 mm	2 in	0.894 lb	405.51 g	Chassis	Hardware not Provided	12 in	8 in	304.8 mm	203.2 mm
Hammond Manufacturing 1444-17135	Open End(s)	Aluminum, Metal	Natural	221 in²	1426 cm²	0.051 "	1.3 mm	127 mm	5 in			Chassis	Hardware not Provided	17 in	13 in	431.8 mm	330.2 mm
Hammond Manufacturing 1444-1593	Open End(s)	Aluminum, Metal	Natural	135 in²	871 cm²	0.051 "	1.3 mm	76.2 mm	3 in			Chassis	Hardware not Provided	15 in	228.6 mm	381 mm	228.6 mm
Hammond Manufacturing 1444-17143	Open End(s)	Aluminum, Metal	Natural			0.051 "	1.3 mm	76.2 mm	3 in			Chassis	Hardware not Provided	17 in	14 in	431.8 mm	355.6 mm	238 in²	1535 cm²
Hammond Manufacturing 1444-17134	Open End(s)	Aluminum, Metal	Natural	221 in²	1426 cm²	0.051 "	1.3 mm	101.6 mm	101.6 mm			Chassis	Hardware not Provided	17 in	13 in	431.8 mm	330.2 mm
Hammond Manufacturing 1444-84515	Open End(s)	Aluminum, Metal	Natural		232 cm²	0.04 in	1.02 mm	38.1 mm	1.5 in			Chassis	Hardware not Provided	8 "	4.5 in	203.2 mm	114.3 mm			36 in²
Hammond Manufacturing 1444-972	Open End(s)	Aluminum, Metal	Natural	62.9 in˛	406 cm˛	0.04 in	1.02 mm	50.8 mm	2 in			Chassis	Hardware not Provided	9 in	7 in	228.6 mm	177.8 mm
Hammond Manufacturing 1444-95525	Open End(s)	Aluminum, Metal	Natural	47.4 in˛	306 cm˛	0.04 in	1.02 mm	63.5 mm	2.5 in			Chassis	Hardware not Provided	9.5 "	5 "	241.3 mm	127 mm
Hammond Manufacturing 1444-12123	Open End(s)	Aluminum, Metal	Natural			0.051 "	1.3 mm	76.2 mm	3 in			Chassis	Hardware not Provided	12 in	12 "	304.8 mm	304.8 mm
Hammond Manufacturing 1444-6	Open End(s)	Aluminum, Metal	Natural	16 in˛	103 cm˛	0.04 in	1.02 mm	50.8 mm	2 in	0.213 lb	96.62 g	Chassis	Hardware not Provided	4 in	4 "	101.6 mm	101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.16
		5	$ 18.63
		10	$ 17.57
		25	$ 17.03
		50	$ 15.97
		100	$ 15.44
		250	$ 14.37
		500	$ 13.84

Description

General part information

1444 Series

Chassis Metal, Aluminum Natural Open End(s) 9.000" L x 7.000" W (228.60mm x 177.80mm) X 2.000" (50.80mm)

Documents

Technical documentation and resources

1434, 1444 Series

Datasheet

1444 Series

Datasheet
