634-15ABPE

Active

Wakefield-Vette

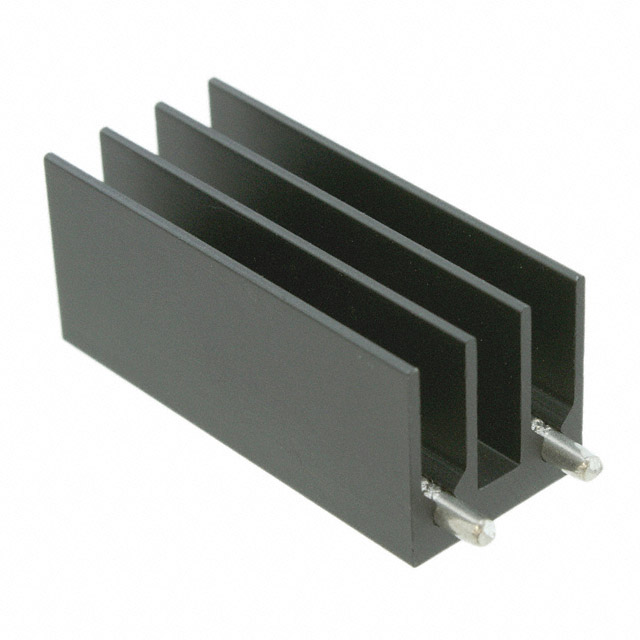

HEATSINK SLIM VERT BLACK TO-220

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK SLIM VERT BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	634-15ABPE

Attachment Method	PC Pin, Bolt On
Fin Height	16.26 mm
Fin Height	0.64 in
Length	1.5 "
Length	38.1 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	2 °C/W
Thermal Resistance @ Natural	50 °C/W
Type	Board Level, Vertical
Width [y]	16.26 mm
Width [y]	0.64 in

Part	Type	Material Finish	Package Cooled	Length	Length	Width [y]	Width [y]	Thermal Resistance @ Forced Air Flow	Shape	Attachment Method	Material	Thermal Resistance @ Natural	Fin Height	Fin Height
Wakefield-Vette 634-15AB	Board Level Vertical	Black Anodized	TO-218 TO-220	1.5 "	38.1 mm	16.26 mm	0.64 in	2 °C/W	Rectangular Fins	Bolt On	Aluminum	50 °C/W	16.26 mm	0.64 in
Wakefield-Vette 634-15ABPE	Board Level Vertical	Black Anodized	TO-220	1.5 "	38.1 mm	16.26 mm	0.64 in	2 °C/W	Rectangular Fins	Bolt On PC Pin	Aluminum	50 °C/W	16.26 mm	0.64 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 3.0W @ 50°C Board Level, Vertical
