RN1311,LXHF

Active

Toshiba Semiconductor and Storage

TRANS PREBIAS NPN 50V 0.1A SC70

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

TRANS PREBIAS NPN 50V 0.1A SC70

Technical Specifications

Parameters and characteristics for this part

Specification	RN1311,LXHF

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	250 MHz
Grade	Automotive
Mounting Type	Surface Mount

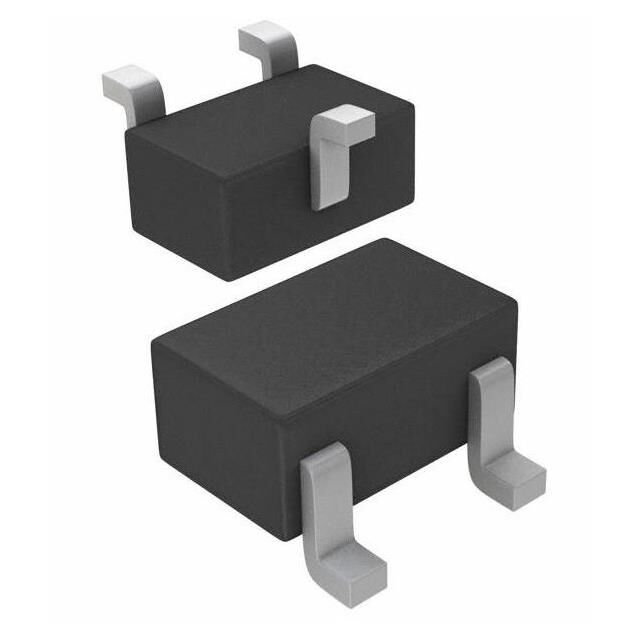

Package / Case	SC-70, SOT-323
Power - Max [Max]	100 mW
Qualification	AEC-Q101
Resistor - Base (R1)	10 kOhms
Resistors Included	R1 Only
Supplier Device Package	SC-70
Transistor Type	NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	Transistor Type	Resistors Included	Resistor - Base (R1)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Qualification	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Grade	Mounting Type	Package / Case	Frequency - Transition
Toshiba Semiconductor and Storage RN1311,LXHF	100 nA	50 V	300 mV	SC-70	NPN - Pre-Biased	R1 Only	10 kOhms	120	AEC-Q101	100 mA	100 mW	Automotive	Surface Mount	SC-70 SOT-323	250 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 250 MHz 100 mW Surface Mount SC-70
