MCX F BHD C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX F BHD C100

Technical Specifications

Parameters and characteristics for this part

Specification	R113553000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Mating Cycles	Number of Ports	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shield Termination	Center Contact Plating	Connector Type	Mounting Feature	Frequency - Max [Max]	Includes	Body Finish	Body Material	Connector Style	Center Contact Material	Voltage Rating	Impedance	Fastening Type	Contact Termination
Radiall USA, Inc. R113553000	500	1	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Gold	Solder	Gold	Female Socket Jack	Bulkhead - Rear Side Nut	6000 MHz	1 Connector 1 Lockwasher 1 Nut	Gold	Brass	MCX	Beryllium Copper Brass	335 V	50 Ohms	Snap-On	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

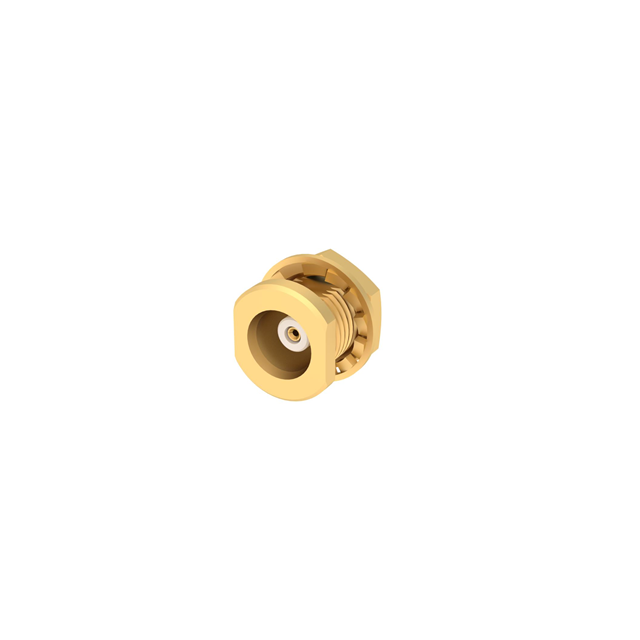

MCX Connector Jack, Female Socket 50 Ohms Panel Mount Solder
