JN14AH04NJ1
ActiveJAE Electronics

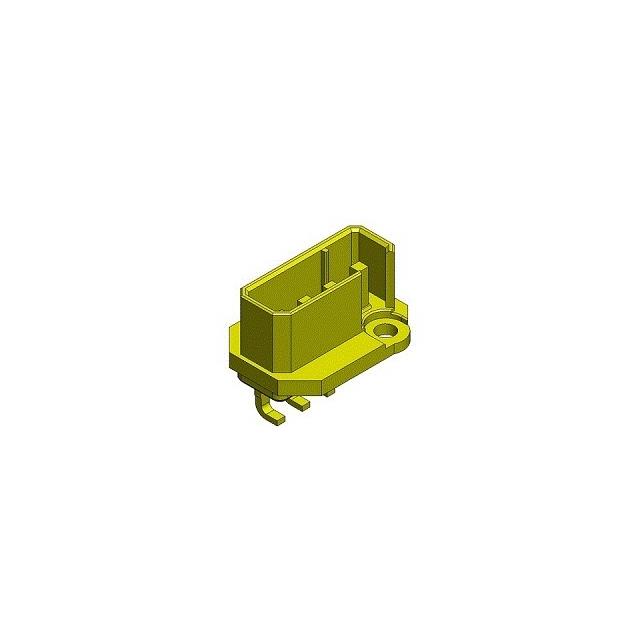

COMPACT WATERPROOF CONNECTOR 4 P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN14AH04NJ1
ActiveJAE Electronics
COMPACT WATERPROOF CONNECTOR 4 P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN14AH04NJ1 |
|---|---|
| Applications | Industrial |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7 A |
| Features | Mounting Flange, Waterproof |
| Insulation Color | Black |
| Insulation Height | 0.244 in |
| Insulation Height | 6.2 mm |
| Insulation Material | Synthetic Resin |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 3.2 mm |
| Pitch - Mating | 0.126 " |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.84 | |
| 10 | $ 14.60 | |||
| 25 | $ 13.83 | |||
| 50 | $ 13.63 | |||
| 100 | $ 12.03 | |||
| 250 | $ 11.23 | |||
| 500 | $ 10.99 | |||
Description
General part information
JN14AH Series
Connector Header Through Hole, Right Angle 4 position 0.126" (3.20mm)
