CONSMB006-G

Active

TE Connectivity Linx

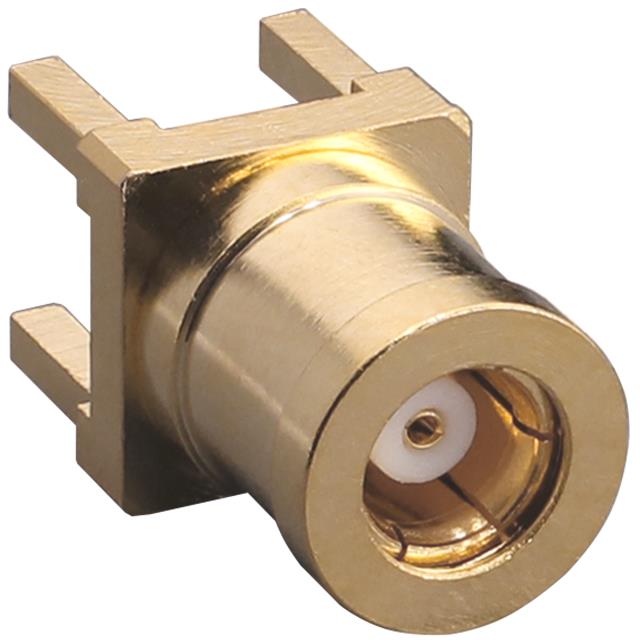

CONN SMB PLUG STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN SMB PLUG STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMB006-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	750 VDC

Part	Number of Ports	Contact Termination	Housing Color	Mounting Type	Body Finish	Dielectric Material	Mating Cycles	Center Contact Material	Impedance	Connector Type	Body Material	Connector Style	Fastening Type	Shield Termination	Center Contact Plating	Voltage Rating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Linx CONSMB006-G	1	Solder	Gold	Through Hole	Gold	Polytetrafluoroethylene (PTFE)	500	Beryllium Copper	50 Ohms	Female Socket Plug	Brass	SMB	Snap-On	Solder	Gold	750 VDC	4 GHz	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.06

General part information

SMB Connector Plug, Female Socket 50 Ohms Through Hole Solder
