NYN1.00BK50

Active

Techflex

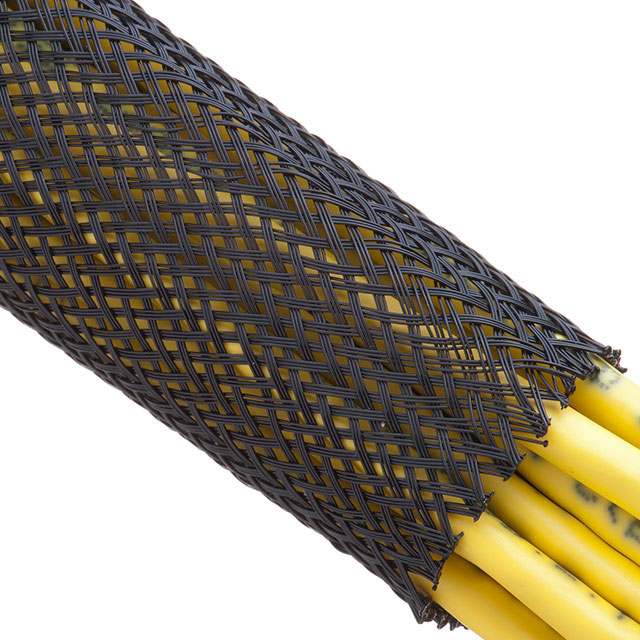

EXPAND SLEEVING 1" X 50' BLACK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 1" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	NYN1.00BK50

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	1.375 in
Diameter - Inside, Expanded [diameter]	34.93 mm
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Environment Protection	UV Resistant
Features	Clean Cut, Chemical Resistant
Length	15.24 m
Length [x]	50 ft
Liquid Protection	Gasoline Resistant, Moisture Resistant
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-45 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.03 in
Wall Thickness [custom]	0.76 mm

Part	Liquid Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length	Length [x]	Type	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Features	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Environment Protection	Abrasion Protection	Wall Thickness [custom]	Wall Thickness [custom]	Type Attributes
Techflex NYN1.00BK50	Gasoline Resistant Moisture Resistant	1 in	25.4 mm	15.24 m	50 ft	Sleeve	1.375 in	34.93 mm	Chemical Resistant Clean Cut	Polyamide (PA66) Nylon 6/6 Halogen Free	Black	150 °C	-45 °C	UV Resistant	Abrasion and Cut Resistant	0.03 in	0.76 mm	Expandable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 45.98

General part information

Sleeve X 50.00' (15.24m) Black

Technical documentation and resources
