1702-1571-003

Active

Radiall USA, Inc.

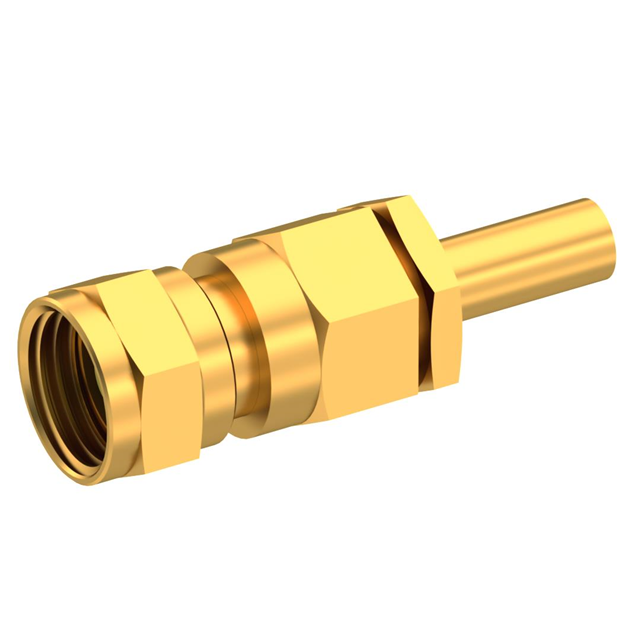

75OHM F STR NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75OHM F STR NA CR 2.6/50S

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1702-1571-003	1702-1571 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RG-316	RG-180, RG-316
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max	-	2 GHz
Housing Color	Gold	Gold
Impedance	75 Ohms	75 Ohms
Insertion Loss	-	0.3 dB
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Shield Termination	Crimp	Crimp
Voltage Rating	-	165 V

75 OHM / STRAIGHT PLUG FEMALE CR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Connector Type	Impedance	Cable Group	Voltage Rating	Shield Termination	Body Material	Insertion Loss	Body Finish	Dielectric Material	Mounting Type	Contact Termination	Housing Color	Center Contact Material	Mating Cycles	Center Contact Plating	Fastening Type
Radiall USA, Inc. 1702-1571-004	-65 ░C	165 °C	1	2 GHz	Female Socket, Plug	75 Ohms	RG-180	165 V	Crimp	Brass	0.3 dB	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	500	Gold
Radiall USA, Inc. 1702-1571-003			1		Female Socket, Plug	75 Ohms	RG-316		Crimp	Brass		Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper		Gold	Snap-On
