PD-1E-DC-9-RL

Active

Switch Components

ANTI VANDAL SPDT ON-(ON) - IP67

Search across all available documentation for this part.

Active

Switch Components

ANTI VANDAL SPDT ON-(ON) - IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.24

General part information

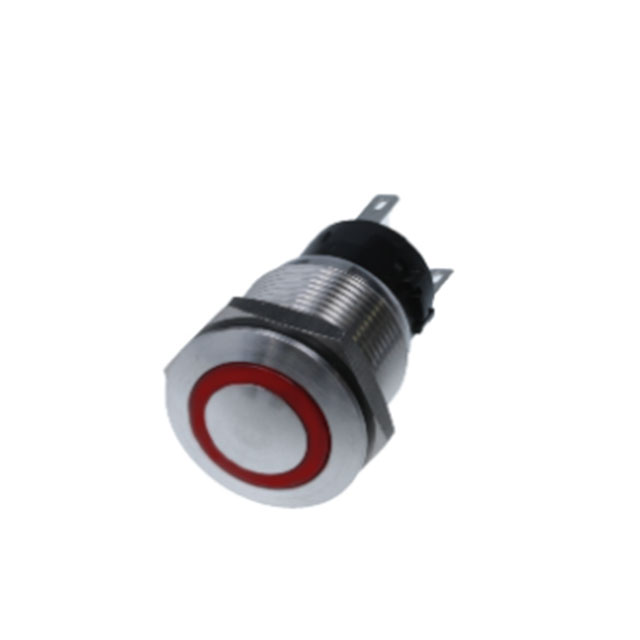

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PD-1E-DC-9-RL	PD-1E-D Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	10 A	10 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	Red, LED	Red, LED, Green
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	19 mm	19 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - DC	14 V	14 V

ANTI VANDAL SPDT ON-(ON) - IP67

Part	Ingress Protection	Color - Actuator/Cap	Electrical Life	Circuit	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Illumination Type, Color	Mechanical Life	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Actuator Marking	Actuator Type
Switch Components PD-1E-DC-9-RL	IP67 - Dust Tight, Waterproof	Silver	6000 Cycles	SPDT	Panel Mount, Front	Illuminated, Standard	19 mm	12 VDC	LED, Red	10000 Steps	On-Mom	10 A	-20 C	70 °C	14 V	Quick Connect - 0.110" (2.8mm)	No Marking	Button, Round
Switch Components PD-1E-DC-9-GL	IP67 - Dust Tight, Waterproof	Silver	6000 Cycles	SPDT	Panel Mount, Front	Illuminated, Standard	19 mm	12 VDC	Green, LED	10000 Steps	On-Mom	10 A	-20 C	70 °C	14 V	Quick Connect - 0.110" (2.8mm)	No Marking	Button, Round
