71-02-7127-1000

Active

Parker Chomerics

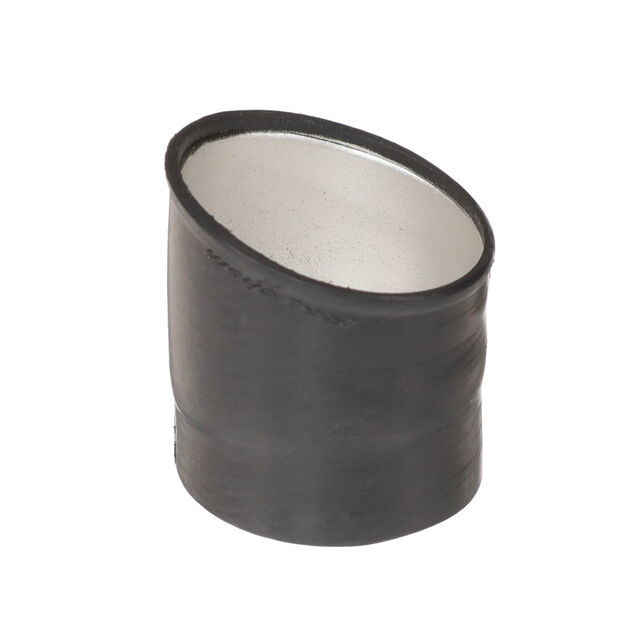

EMI HEATSHRINK BOOT R/A BLACK

Search across all available documentation for this part.

Active

Parker Chomerics

EMI HEATSHRINK BOOT R/A BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	71-02-7127-1000

Color	Black
Features	Lip
Large Diameter Recovered [diameter]	14.22 mm
Large Diameter Recovered [diameter]	0.56 in
Large Diameter Supplied [diameter]	28.45 mm
Large Diameter Supplied [diameter]	1.12 in
Large Recovered Length [x]	1.07 in
Large Recovered Length [x]	27.18 mm
Material	Polyolefin (PO)
Small Diameter Recovered [diameter]	0.26 "
Small Diameter Recovered [diameter]	6.6 mm
Small Diameter Supplied [diameter]	28.45 mm
Small Diameter Supplied [diameter]	1.12 in
Small Recovered Length	16.51 mm
Small Recovered Length [custom]	0.65 in
Total Length Recovered	33.78 mm
Total Length Recovered	1.33 in
Type	Boot - 90°

EMI HEATSHRINK BOOT R/A BLACK

Part	Color	Material	Features	Total Length Recovered	Total Length Recovered	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Type	Small Recovered Length	Small Recovered Length [custom]	Large Recovered Length [x]	Large Recovered Length [x]
Parker Chomerics 71-02-7127-1000	Black	Polyolefin (PO)	Lip	33.78 mm	1.33 in	14.22 mm	0.56 in	28.45 mm	1.12 in	28.45 mm	1.12 in	0.26 "	6.6 mm	Boot - 90°	16.51 mm	0.65 in	1.07 in	27.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 401.56

General part information

Heat Shrink Boot - 90° Black

Technical documentation and resources
