FDSD072AK

Active

Belden Inc.

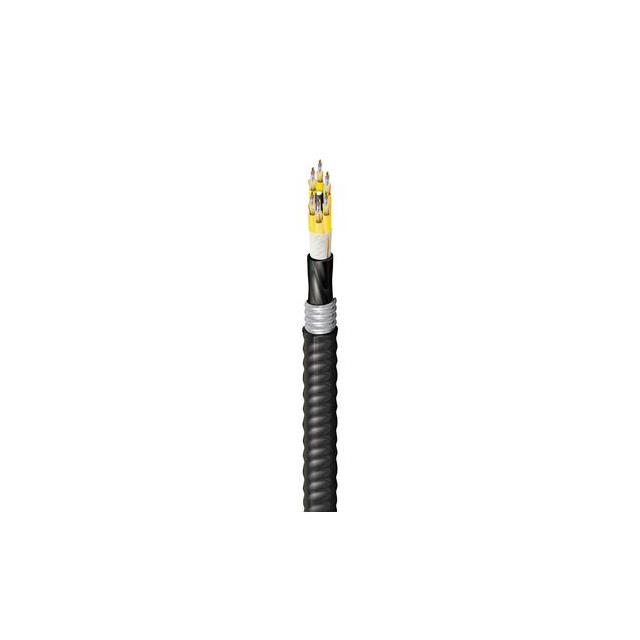

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FDSD072AK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Armored, 72 Fibers
Jacket (Insulation) Diameter [diameter]	1.11 in
Jacket (Insulation) Diameter [diameter]	28.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Singlemode

Part	Jacket Color	Core Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cladding Diameter [diameter]	Tensile Strength	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Style	Type	Features	Features
Belden Inc. FDSD072LKY
Belden Inc. FDSD072FK	Black	9 µm	-40 °C	70 °C	125 µm	81.6 kg	Poly-Vinyl Chloride (PVC)	OFCR	31.14 mm	1.226 in	Multiple Fibers	Singlemode	72 Fibers Armored
Belden Inc. FDSD072LK	Black	9 µm	-40 °C	70 °C	125 µm	81.6 kg		OFNR	20.9 mm	0.823 in	Multiple Fibers	Singlemode	Rip Cord	72 Fibers
Belden Inc. FDSD072AK	Black	9 µm	-40 °C	70 °C	125 µm	81.6 kg	Poly-Vinyl Chloride (PVC)	OFCP	28.19 mm	1.11 in	Multiple Fibers	Singlemode	72 Fibers Armored
Belden Inc. FDSD072RK	Black	9 µm	-40 °C	70 °C	125 µm	81.6 kg	Poly-Vinyl Chloride (PVC)	OFNR	20.9 mm	0.823 in	Multiple Fibers	Singlemode	Rip Cord	72 Fibers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 9.75
LCSC	Piece	1	$ 3.77

General part information

Fiber Optic Cable Black Singlemode 125µm
