89182 0101000

Active

Belden Inc.

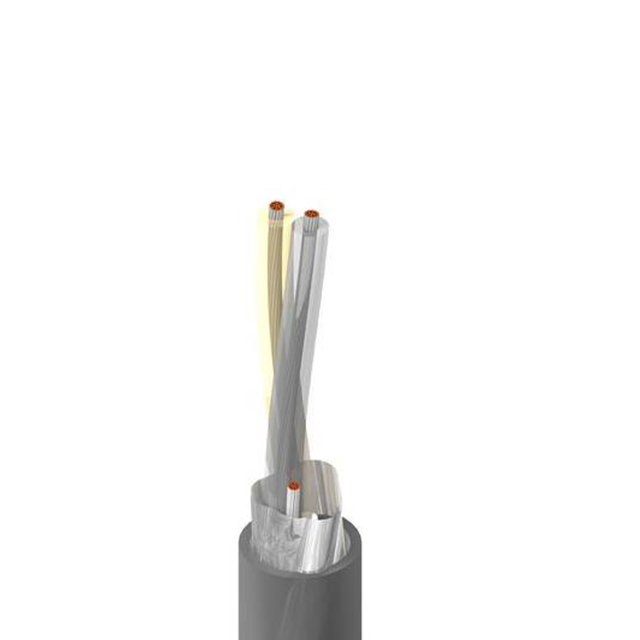

TWINAX 22AWG 150 OHM

Search across all available documentation for this part.

Active

Belden Inc.

TWINAX 22AWG 150 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	89182 0101000

Cable Type	Twinaxial - Plenum
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	19 Strands
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Features	Drain Wire
Impedance	150 Ohms
Jacket (Insulation) Diameter [diameter]	0.307 in
Jacket (Insulation) Diameter [diameter]	7.8 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
VoP, Velocity of Propagation	78
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Wire Gauge	Shield Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Dielectric Material	Length	Length	Shield Coverage	VoP, Velocity of Propagation	Impedance	Jacket Color	Cable Type
Belden Inc. 89182 0101000	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	0.307 in	7.8 mm	200 °C	-70 °C	Drain Wire	22 AWG	Aluminum	Foil	34 AWG	19 Strands	Foam Fluorinated Ethylene Propylene (FFEP)	304.8 m	1000 ft	100 %	78	150 Ohms	Black	Twinaxial - Plenum
Belden Inc. 89182 0085000	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	0.307 in	7.8 mm	200 °C	-70 °C	Drain Wire	22 AWG	Aluminum	Foil	34 AWG	19 Strands	Foam Fluorinated Ethylene Propylene (FFEP)			100 %	78	150 Ohms	Gray	Twinaxial - Plenum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 12.40

General part information

Twinaxial - Plenum Cable 22 AWG 1000.0' (304.80m) 150 Ohms
