Technical Specifications
Parameters and characteristics for this part
| Specification | L99DZ200GTR |
|---|---|
| Current - Supply | 11 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 64-LQFP |
| Qualification | AEC-Q100 |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.47 | |
| 10 | $ 6.75 | |||
| 25 | $ 6.43 | |||
| 100 | $ 5.59 | |||
| 250 | $ 5.33 | |||
| 500 | $ 4.86 | |||
| Digi-Reel® | 1 | $ 7.47 | ||
| 10 | $ 6.75 | |||
| 25 | $ 6.43 | |||
| 100 | $ 5.59 | |||
| 250 | $ 5.33 | |||
| 500 | $ 4.86 | |||
| Tape & Reel (TR) | 1000 | $ 4.24 | ||
| 2000 | $ 4.08 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 7.28 | |
| 10 | $ 5.63 | |||
| 25 | $ 5.21 | |||
| 50 | $ 4.98 | |||
| 100 | $ 4.75 | |||
| 250 | $ 4.54 | |||
| 500 | $ 4.41 | |||
| 1000 | $ 4.27 | |||
Description
General part information

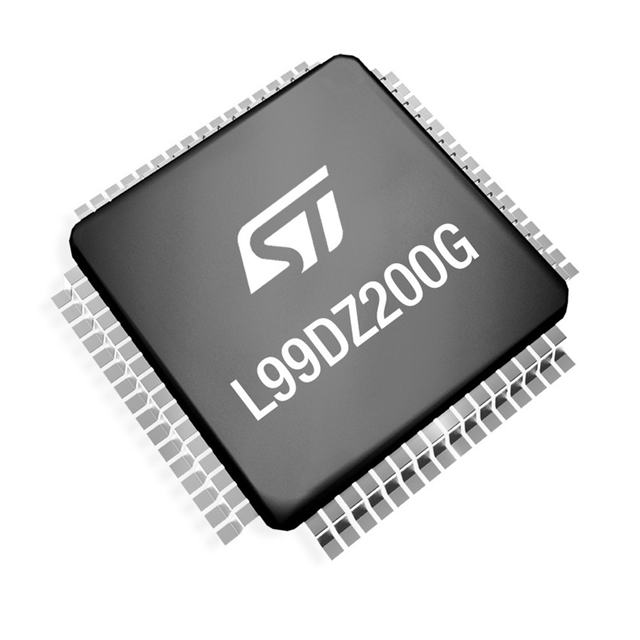

L99DZ200G Series
The L99DZ200G is a door zone systems IC providing electronic control modules with enhanced power management power supply functionality, including various standby modes, as well as LIN and HS CAN physical communication layers.
The two low-drop voltage regulators of the devices supply the system microcontroller and external peripheral loads such as sensors and provide enhanced system standby functionality with programmable local and remote wake-up capability. In addition 5 high-side drivers to supply LEDs, 2 high-side drivers to supply bulbs increase the system integration level.
Three High Side drivers can be configured to support the so-called Constant Current mode conceived to supply external LED modules with huge decoupling capacitors.
