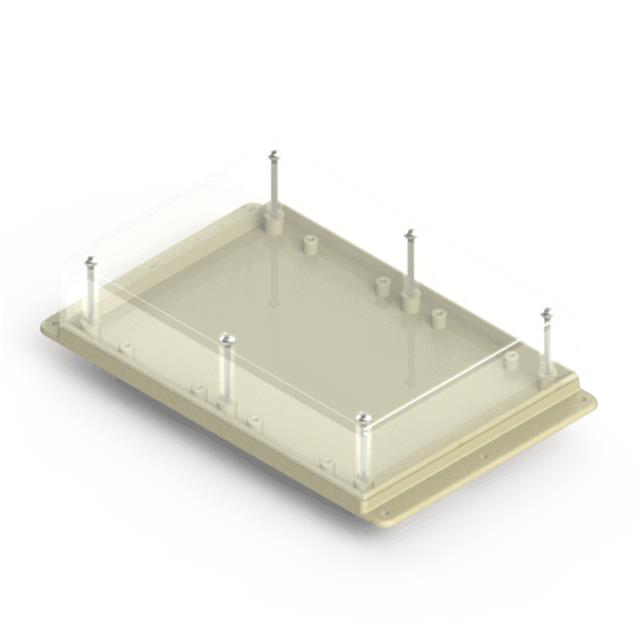

WM072RC,AL

Active

Serpac

BOX PLSTC AMD/CL 6.88"L X 4.88"W

Deep-Dive with AI

Search across all available documentation for this part.

WM072RC,AL

Active

Serpac

BOX PLSTC AMD/CL 6.88"L X 4.88"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM072RC,AL	WM072 Series

Area (L x W)	33.6 in²	33.6 in²
Area (L x W)	217 cm²	217 cm²
Area (L x W)	-	217 cm˛
Area (L x W)	-	33.6 in˛
Color	-	Gray, Clear Cover/Door, Black, Almond
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	PCB Supports, Wall Mount, Mounting Flange, Front Access
Height [z]	40.64 mm	40.64 mm
Height [z]	1.6 in	1.6 in
Material	Plastic, Polycarbonate	Plastic, ABS, Plastic, Polycarbonate
Material Flammability Rating	-	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	174.75 mm	174.75 mm
Size / Dimension [x]	6.88 in	6.88 in
Size / Dimension [y]	123.95 mm	123.95 mm
Size / Dimension [y]	4.88 in	4.88 in
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	185.97 g	185.97 g
Weight	0.41 lb	0.41 lb

WM072 Series

BOX ABS GRAY 6.88"L X 4.88"W

Part	Material Flammability Rating	Area (L x W)	Area (L x W)	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Material	Container Type	Thickness	Thickness	Height [z]	Height [z]	Color	Design	Features	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM072I,GY	UL94 HB	33.6 in²	217 cm²	185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Gray	Cover Included	Mounting Flange, PCB Supports, Wall Mount
Serpac WM072RI,GY	UL94 HB	33.6 in²	217 cm²	185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Gray	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount
Serpac WM072RC,AL		33.6 in²	217 cm²	185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, Polycarbonate	Box	2.54 mm	0.1 in	40.64 mm	1.6 in		Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount
Serpac WM072C,GY		33.6 in²	217 cm²	185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, Polycarbonate	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Clear Cover/Door, Gray	Cover Included	Mounting Flange, PCB Supports, Wall Mount
Serpac WM072R,GY	UL94 HB	33.6 in²	217 cm²	185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Gray	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount
Serpac WM072,GY	UL94 HB			185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Gray	Cover Included	Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛
Serpac WM072RC,BK				185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, Polycarbonate	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Black, Clear Cover/Door	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛
Serpac WM072I,BK	UL94 HB			185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Black	Cover Included	Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛
Serpac WM072I,AL	UL94 HB	33.6 in²	217 cm²	185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Almond	Cover Included	Mounting Flange, PCB Supports, Wall Mount
Serpac WM072,BK	UL94 HB			185.97 g	0.41 lb	123.95 mm	174.75 mm	4.88 in	6.88 in	IP40, NEMA 1	Plastic, ABS	Box	2.54 mm	0.1 in	40.64 mm	1.6 in	Black	Cover Included	Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.37

Description

General part information

WM072 Series

Box Plastic, Polycarbonate Almond, Clear Cover/Door Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.600" (40.64mm)

Documents

Technical documentation and resources

No documents available
