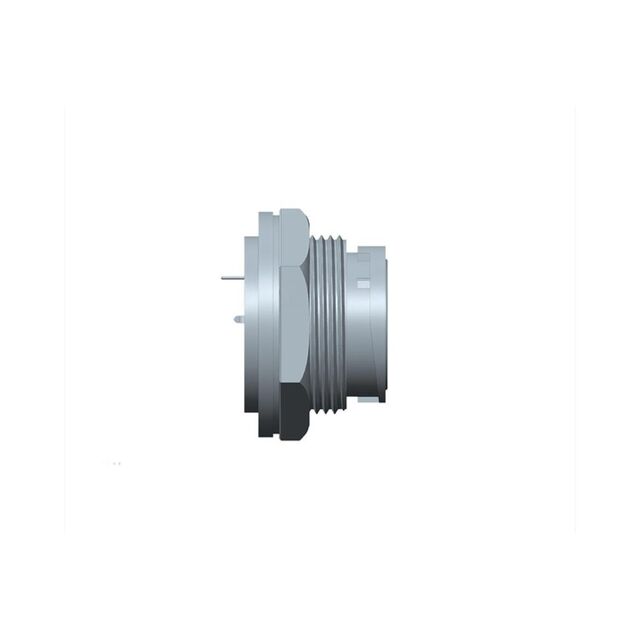

UB-20PMFP-LC7001

Active

Amphenol LTW

CONN RCPT USB2.0 TYPEB 4POS PCB

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT USB2.0 TYPEB 4POS PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UB-20PMFP-LC7001	UB-20PMFP Series

Cable Type	-	Round
Color	-	Black
Connector Type	USB-B	USB B Female Receptacle to Rectangular 5 pos Header, USB-B, USB B Female Receptacle to Rectangular 5 pos Plug
Contact Finish	-	Gold
Current Rating (Amps)	1.5 A	1.5 A
Gender	Receptacle	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP67 - Dust Tight, Waterproof
Insulation Color	Black	Black
Length	-	50 mm
Length	-	0.16 ft
Mounting Feature	Bulkhead - Front Side Nut; Vertical	Bulkhead - Front Side Nut; Vertical
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	-	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Usage	-	Industrial Environments - IP68

CBL ASSY USB-B F-5P HDR 0.16'

Part	Usage	Color	Length	Length	Cable Type	Shielding	Connector Type	Mounting Type	Ingress Protection	Gender	Number of Contacts [custom]	Termination	Contact Finish	Specifications	Mounting Feature	Number of Ports	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
Amphenol LTW UB-20PMFP-SC8002	Industrial Environments - IP68	Black	50 mm	0.16 ft	Round	Shielded	USB B Female Receptacle to Rectangular 5 pos Header
Amphenol LTW UB-20PMFP-SC8001							USB-B	Panel Mount, Through Hole	IP68 - Dust Tight, Waterproof	Receptacle	4	Solder	Gold	USB 2.0	Bulkhead - Front Side Nut; Vertical	1
Amphenol LTW UB-20PMFP-SC8003	Industrial Environments - IP68	Black	50 mm	0.16 ft	Round	Shielded	USB B Female Receptacle to Rectangular 5 pos Plug
Amphenol LTW UB-20PMFP-LC7001							USB-B	Panel Mount, Through Hole	IP67 - Dust Tight, Waterproof	Receptacle	4	Solder		USB 2.0	Bulkhead - Front Side Nut; Vertical	1	Black	-40 °C	105 ░C	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole
