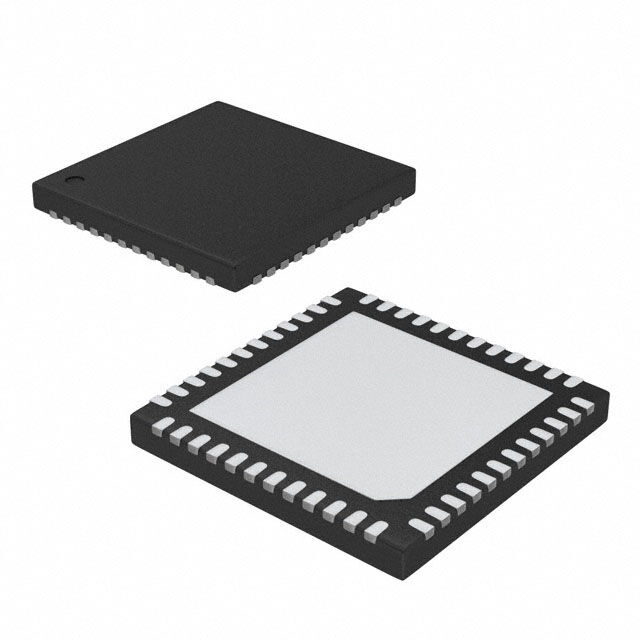

IRS23365DMTRPBF

Obsolete

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 48MLPQ

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 48MLPQ

Technical Specifications

Parameters and characteristics for this part

Specification	IRS23365DMTRPBF

Channel Type	3-Phase
Current - Peak Output (Source, Sink) [custom]	180 mA
Current - Peak Output (Source, Sink) [custom]	380 mA
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET, IGBT
High Side Voltage - Max (Bootstrap) [Max]	600 V
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	2.5 V, 0.8 V
Mounting Type	Surface Mount
Number of Drivers	6
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	48-VFQFN Exposed Pad
Rise / Fall Time (Typ) [custom]	125 ns
Rise / Fall Time (Typ) [custom]	50 ns
Supplier Device Package	48-MLPQ (7x7)
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	10 VDC

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Input Type	Package / Case	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Gate Type	Driven Configuration	Channel Type	Mounting Type	Supplier Device Package	Logic Voltage - VIL, VIH
Infineon Technologies IRS23365DMTRPBF	125 ns	50 ns	6	150 °C	-40 °C	180 mA	380 mA	Non-Inverting	48-VFQFN Exposed Pad	600 V	20 V	10 VDC	IGBT N-Channel MOSFET	Half-Bridge	3-Phase	Surface Mount	48-MLPQ (7x7)	0.8 V 2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half-Bridge Gate Driver IC Non-Inverting 48-MLPQ (7x7)
