816-22-005-10-005101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 5POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 5POS PCB

Technical Specifications

Parameters and characteristics for this part

...

Part	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Material	Contact Finish	Connector Type	Number of Contacts [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts
Mill-Max Manufacturing Corp. 816-22-004-10-005101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston	4	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 816-22-039-10-009101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin
Mill-Max Manufacturing Corp. 816-22-038-10-009101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	38
Mill-Max Manufacturing Corp. 816-22-046-10-007101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	46
Mill-Max Manufacturing Corp. 816-22-060-10-004101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	60
Mill-Max Manufacturing Corp. 816-22-061-10-003101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	61
Mill-Max Manufacturing Corp. 816-22-002-10-006101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin
Mill-Max Manufacturing Corp. 816-22-051-10-000101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	51
Mill-Max Manufacturing Corp. 816-22-005-10-005101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	5
Mill-Max Manufacturing Corp. 816-22-061-10-006101	2.54 mm	0.1 in	Through Hole	1	Copper Alloy	Gold	Piston		0.51 µm	20 µin	61

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

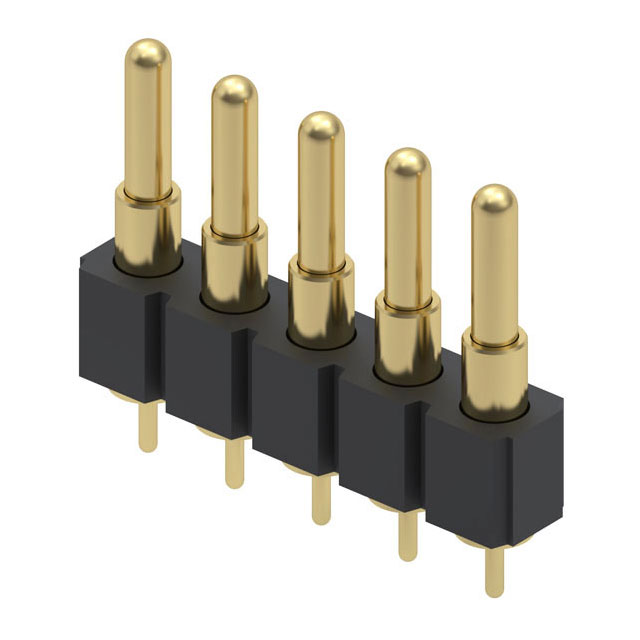

5 Position Spring Piston Connector Through Hole
