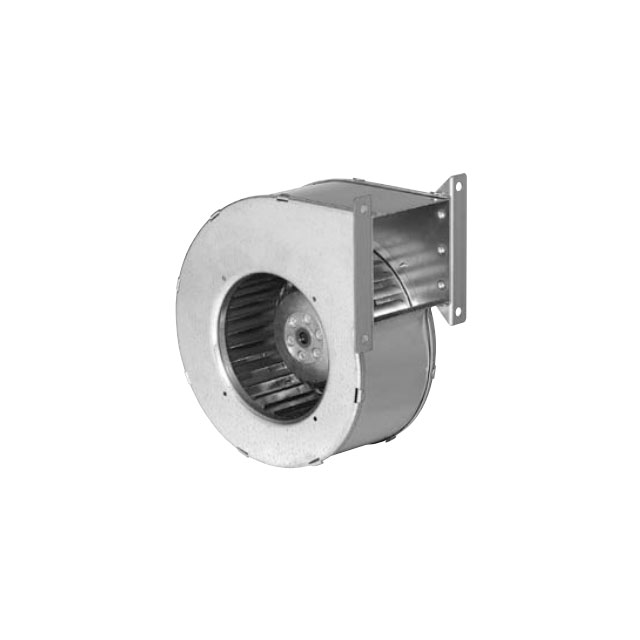

G2E133-DN77-27

Active

ebm-papst Inc.

AC CENTRIFUGAL BLOWER

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC CENTRIFUGAL BLOWER

Technical Specifications

Parameters and characteristics for this part

Specification	G2E133-DN77-27

Approval Agency	UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	490 mA
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Steel
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	110 W
RPM	2100 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171 mm
Size / Dimension [z]	180 mm
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [y]	81 mm

Part	Material - Blade	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Ingress Protection	Fan Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)	Voltage - Rated	Width [y]	Features	Approval Agency	Bearing Type	Material - Frame	RPM
ebm-papst Inc. G2E133-DN77-27	Steel	110 W	50 °C	-25 °C	-25 °C	50 °C	4 Wire Leads	IP44	Blower Centrifugal	Rectangular/Rounded	180 mm	171 mm	490 mA	230 VAC	81 mm	Capacitor Thermal Overload Protector (TOP)	CE CSA UL	Ball	Steel	2100 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 171mm L x 180mm H Ball 4 Wire Leads
