EVALMASTERGAN2

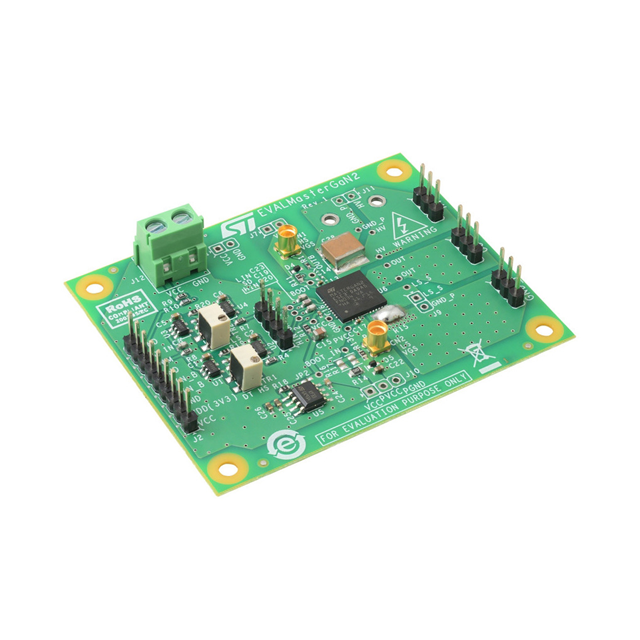

ActiveDEMONSTRATION BOARD FOR MASTERGAN2 HIGH POWER DENSITY HALF-BRIDGE HIGH VOLTAGE DRIVER WITH TWO 650V ENHANCED MODE GAN HEMT
Deep-Dive with AI
Search across all available documentation for this part.
EVALMASTERGAN2
ActiveDEMONSTRATION BOARD FOR MASTERGAN2 HIGH POWER DENSITY HALF-BRIDGE HIGH VOLTAGE DRIVER WITH TWO 650V ENHANCED MODE GAN HEMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALMASTERGAN2 |
|---|---|
| Contents | Board(s) |
| Function | Half H-Bridge Driver (External FET) |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | MASTERGAN2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVALMASTERGAN2 Series
The EVALMASTERGAN4 board is an easy to use and quick to adapt tool to evaluate the characteristics of MASTERGAN4 and to quickly create new topologies without the need of complete PCB design.
The EVALMASTERGAN4 provides an on-board programmable inputs deadtime generator with a single VCC supply (typ. 6 V). An embedded Linear voltage regulator offers 3.3 V rail to supply low voltage logic circuit like microcontrollers or FPGA.
Some spare footprint is also included to customize the board to operate with final application. These customizations include: use of separate input signal or single PWM signal, use of external bootstrap diode, separate supply for VCC, PVCC or Vbo and also the use of low-side shunt resistor for peak current mode topologies.
