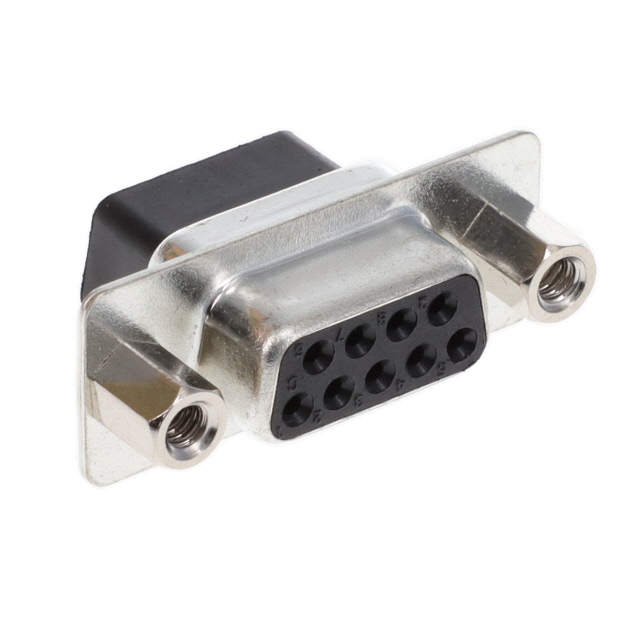

L177RRE09SVF
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 9POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L177RRE09SVF
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 9POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L177RRE09SVF |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.01 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.82 | |||
| 40 | $ 0.80 | |||
| 90 | $ 0.77 | |||
| 270 | $ 0.70 | |||
| 450 | $ 0.63 | |||
| 990 | $ 0.56 | |||
| 2430 | $ 0.50 | |||
Description
General part information
L177RRE09 Series
Receptacle for Female Contacts Housing D-Sub Connector 9 Position
