OA254LFG221T
ActiveOrion Fans

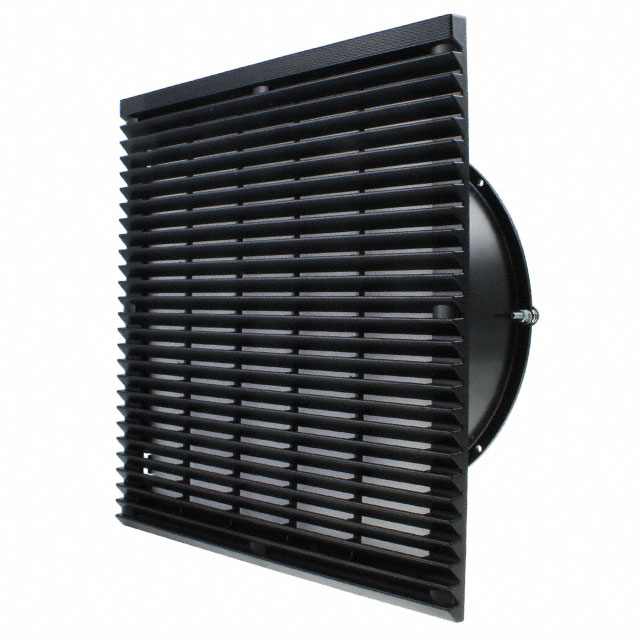

LOUVERED FILTER FAN GUARD KIT WITH 254 MM FAN INSTALLED, 300 CFM, 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsOne Page Summary EN
OA254LFG221T
ActiveOrion Fans
LOUVERED FILTER FAN GUARD KIT WITH 254 MM FAN INSTALLED, 300 CFM, 230V
Deep-Dive with AI
DocumentsOne Page Summary EN
Technical Specifications
Parameters and characteristics for this part
| Specification | OA254LFG221T |
|---|---|
| Air Flow | 15.32 m³/min |
| Air Flow | 547 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 140 mA |
| Fan Type | Tubeaxial |
| Features | Kit, Thermal Overload Protector (TOP), Capacitor |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 33 W |
| RPM | 1650 RPM |
| Size / Dimension [x] | 320 mm |
| Size / Dimension [y] | 320 mm |
| Static Pressure | 0.39 in H2O |
| Static Pressure | 97.1 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Voltage Range [Max] | 260 VAC |
| Voltage Range [Min] | 160 VAC |
| Width [y] | 122.5 mm |
OA254LF Series
| Part | Size / Dimension [x] | Size / Dimension [z] | Noise | Power (Watts) | RPM | Lifetime @ Temp. | Voltage - Rated | Material - Blade | Material - Frame | Bearing Type | Current Rating (Amps) | Features | Air Flow | Air Flow | Fan Type | Width [x] | Approval Agency | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Voltage Range [Min] | Voltage Range [Max] | Size / Dimension [y] | Width [y] | Operating Temperature [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 322.7 mm | 322.7 mm | 55 dB | 33 W | 1650 RPM | 60000 Hrs | 115 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | 0.29 A | Capacitor Kit Thermal Overload Protector (TOP) | 15.32 m³/min | 547 CFM | Tubeaxial | 142.4 mm | cURus TUV | 2 Terminals or 2 Wire Leads | -20 °C | 70 °C | -20 C | 70 °C | 0.39 in H2O | 97.1 Pa | 80 VAC | 130 VAC | ||||
Orion Fans | 322.7 mm | 322.7 mm | 69 dB | 75 W | 2700 RPM | 60000 Hrs | 230 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | Capacitor Kit Thermal Overload Protector (TOP) | 23.8 mł/min | 850 CFM | Tubeaxial | 142.4 mm | cURus TUV | 2 Terminals or 2 Wire Leads | -20 °C | 70 °C | -20 C | 70 °C | 0.78 in H2O | 194.3 Pa | 160 VAC | 260 VAC | |||||
Orion Fans | 320 mm | 55 dB | 33 W | 1650 RPM | 60000 Hrs | 230 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | 140 mA | Capacitor Kit Thermal Overload Protector (TOP) | 15.32 m³/min | 547 CFM | Tubeaxial | cURus TUV | 2 Terminals | -20 °C | -20 C | 80 C | 0.39 in H2O | 97.1 Pa | 160 VAC | 260 VAC | 320 mm | 122.5 mm | 80 °C | ||||
Orion Fans | 317 mm | 69 dB | 75 W | 2700 RPM | 60000 Hrs | 230 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | Capacitor Kit Thermal Overload Protector (TOP) | 23.8 mł/min | 850 CFM | Tubeaxial | 130.5 mm | cURus TUV | 2 Terminals or 2 Wire Leads | -20 °C | 70 °C | -20 C | 70 °C | 0.78 in H2O | 194.3 Pa | 160 VAC | 260 VAC | 317 mm | |||||
Orion Fans | 317 mm | 55 dB | 33 W | 1650 RPM | 60000 Hrs | 115 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | 0.29 A | Capacitor Kit Thermal Overload Protector (TOP) | 15.32 m³/min | 547 CFM | Tubeaxial | 130.5 mm | cURus TUV | 2 Terminals or 2 Wire Leads | -20 °C | 70 °C | -20 C | 70 °C | 0.39 in H2O | 97.1 Pa | 80 VAC | 130 VAC | 317 mm | ||||
Orion Fans | 320 mm | 69 dB | 75 W | 2700 RPM | 60000 Hrs | 115 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | Capacitor Kit | 23.8 mł/min | 850 CFM | Tubeaxial | cURus TUV | 2 Terminals | -40 °C | -40 °C | 70 °C | 0.78 in H2O | 194.3 Pa | 80 VAC | 130 VAC | 320 mm | 122.5 mm | 70 °C | IP54 - Dust Protected Water Resistant | ||||
Orion Fans | 322.7 mm | 322.7 mm | 69 dB | 75 W | 2700 RPM | 60000 Hrs | 115 VAC | Polybutylene Terephthalate (PBT) | Aluminum | Ball | Capacitor Kit Thermal Overload Protector (TOP) | 23.8 mł/min | 850 CFM | Tubeaxial | 142.4 mm | cURus TUV | 2 Terminals or 2 Wire Leads | -20 °C | 70 °C | -20 C | 70 °C | 0.78 in H2O | 194.3 Pa | 80 VAC | 130 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA254LF Series
Fan Tubeaxial 230VAC Square - 320mm L x 320mm H Ball 547.0 CFM (15.32mł/min) 2 Terminals
