T4110502041-000
ActiveTE Connectivity AMP Connectors

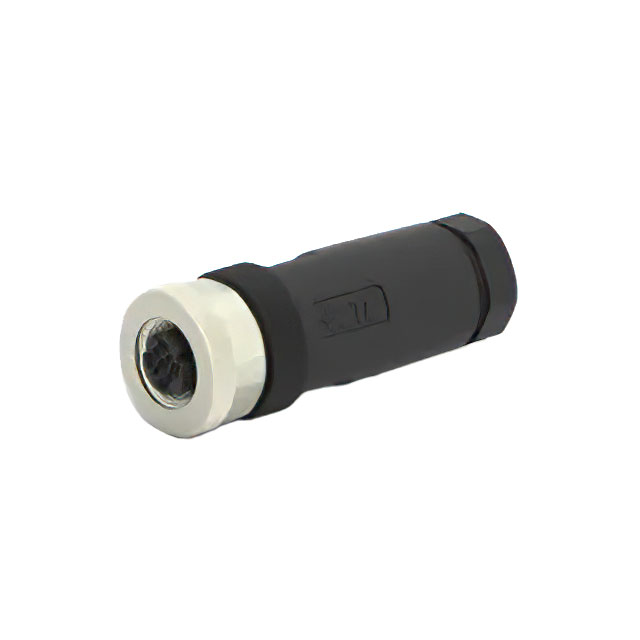

CONN PLUG FMALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4110502041-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 4POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4110502041-000 | T41105 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) | Nickel, Brass, Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening | - | 4 - 6 mm |
| Cable Opening | - | 0.157 - 0.236 in |
| Cable Opening [Max] [custom] | 8 mm | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in | 0.236 in |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Zinc Alloy | Bronze, Zinc Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | D | D |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M12-4 | M12-4, M12-3, M12-2, M12-5 |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | Screw | Screw |
| Voltage Rating | 250 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.23 | |
| 10 | $ 6.14 | |||
| 25 | $ 5.76 | |||
| 50 | $ 5.48 | |||
| 100 | $ 5.22 | |||
| 250 | $ 4.89 | |||
| 500 | $ 4.66 | |||
| 1000 | $ 4.44 | |||
T41105 Series
CONN PLUG FMALE 4P SILVER SCREW
| Part | Connector Type | Shielding | Color | Shell Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Features | Number of Positions | Orientation | Primary Material | Current Rating (Amps) | Mounting Type | Shell Finish | Insert Material | Ingress Protection | Backshell Material, Plating | Contact Finish - Mating | Termination | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Applications | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4110512042-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | 4 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-4 | 2.03 µm | 80 µin | ||
TE Connectivity AMP Connectors T4110512031-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Gold | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-3 | 0.076 µm | 3 µin | |||
TE Connectivity AMP Connectors T4110502041-000 | Female Sockets, Plug | Unshielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | 4 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Glass Filled, Polybutylene Terephthalate (PBT) | Gold | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-4 | 0.076 µm | 3 µin | ||
TE Connectivity AMP Connectors T4110511022-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | 2 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | Industrial | M12-2 | 2.03 µm | 80 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110511042-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | 4 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | Industrial | M12-4 | 2.03 µm | 80 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110512041-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | 4 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Gold | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-4 | 0.076 µm | 3 µin | ||
TE Connectivity AMP Connectors T4110512052-000 | Female Sockets, Plug | Shielded | Silver | Brass | 60 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-5 | 2.03 µm | 80 µin | |||
TE Connectivity AMP Connectors T4110501041-000 | Female Sockets, Plug | Unshielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | 4 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Glass Filled, Polybutylene Terephthalate (PBT) | Gold | Screw | Industrial | M12-4 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110501021-000 | Female Sockets, Plug | Unshielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | 2 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Glass Filled, Polybutylene Terephthalate (PBT) | Gold | Screw | Industrial | M12-2 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110511021-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | 2 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Gold | Screw | Industrial | M12-2 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110501051-000 | Female Sockets, Plug | Unshielded | Silver | Brass | 60 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Glass Filled, Polybutylene Terephthalate (PBT) | Gold | Screw | Industrial | M12-5 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4110512032-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-3 | 2.03 µm | 80 µin | |||
TE Connectivity AMP Connectors T4110512022-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | 2 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | M12-2 | 2.03 µm | 80 µin | ||
TE Connectivity AMP Connectors T4110501031-000 | Female Sockets, Plug | Unshielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Glass Filled, Polybutylene Terephthalate (PBT) | Gold | Screw | Industrial | M12-3 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4110511031-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Gold | Screw | Industrial | M12-3 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4110511041-000 | Female Sockets, Plug | Shielded | Silver | Brass | 250 VDC | 85 °C | -40 °C | Zinc Alloy | Backshell, Coupling Nut | 4 | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Gold | Screw | Industrial | M12-4 | 0.076 µm | 3 µin | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4110511052-000 | Female Sockets, Plug | Shielded | Silver | Brass | 60 VDC | 85 °C | -40 °C | Bronze | Backshell, Coupling Nut | D | Metal | 4 A | Free Hanging (In-Line) | Nickel | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | Brass, Nickel | Silver | Screw | Industrial | M12-5 | 2.03 µm | 80 µin | 4 mm, 6 mm | 0.157 in, 0.236 in |
Description
General part information
T41105 Series
4 Position Circular Connector Plug, Female Sockets Screw
