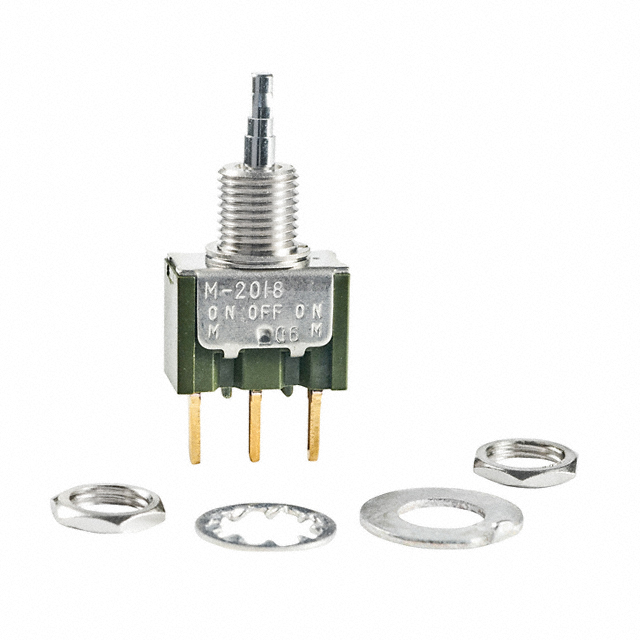

M2018KA1G03

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2018KA1G03

Actuator Type	Lever for Cap
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit	Illumination	Bushing Thread	Panel Cutout Dimensions [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Electrical Life	Voltage Rating - DC	Termination Style	Actuator Type
NKK Switches M2018KA1G03	SPDT	Non-Illuminated	1/4-40	6.5 mm	Epoxy Sealed Terminals	-30 ░C	85 °C	0.4 VA	28 V	Mom-Off-Mom	50000 Cycles	28 V	PC Pin	Lever for Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
