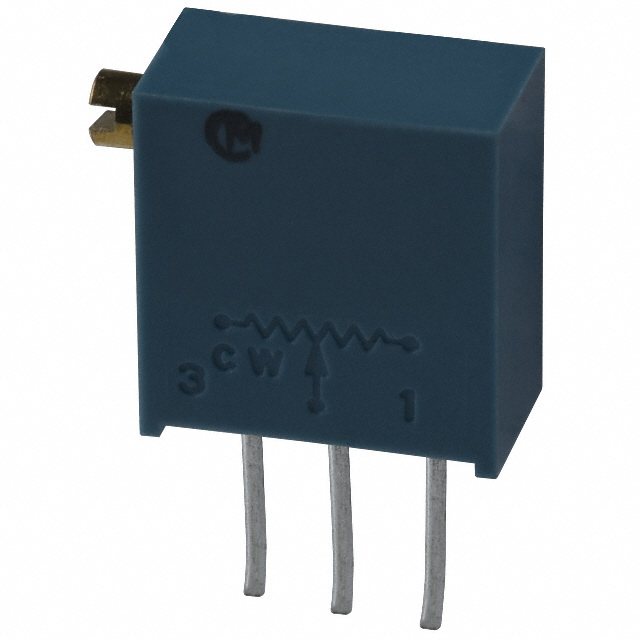

PV36X200C01B00

Active

Bourns Inc.

TRIMMER - 3/8IN SQ MT CERMET /TUBE PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER - 3/8IN SQ MT CERMET /TUBE PACKAGING

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Mounting Type	Adjustment Type	Power (Watts)	Power (Watts)	Tolerance	Temperature Coefficient	Resistive Material	Resistance
Bourns Inc. PV36X504A01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet
Bourns Inc. PV36X502C01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet	5 kOhms
Bourns Inc. PV36X105A01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet	1 MOhms
Bourns Inc. PV36X201A01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet	200 Ohms
Bourns Inc. PV36X104C01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet	100 kOhms
Bourns Inc. PV36X202A01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet	2 kOhms
Bourns Inc. PV36X100A01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	150 ppm/°C	Cermet	10 Ohms
Bourns Inc. PV36X201C01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/°C	Cermet	200 Ohms
Bourns Inc. PV36X103C01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	100 ppm/C	Cermet	10000 Ohms
Bourns Inc. PV36X200C01B00	25	0.394 in	5 mm	0.197 in	10 mm	PC Pins	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	150 ppm/°C	Cermet	20 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
