Technical Specifications
Parameters and characteristics for this part
| Specification | LD57100J110R |
|---|---|
| Control Features | Enable |
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 50 çA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 6-XFBGA, FCBGA |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75 dB |

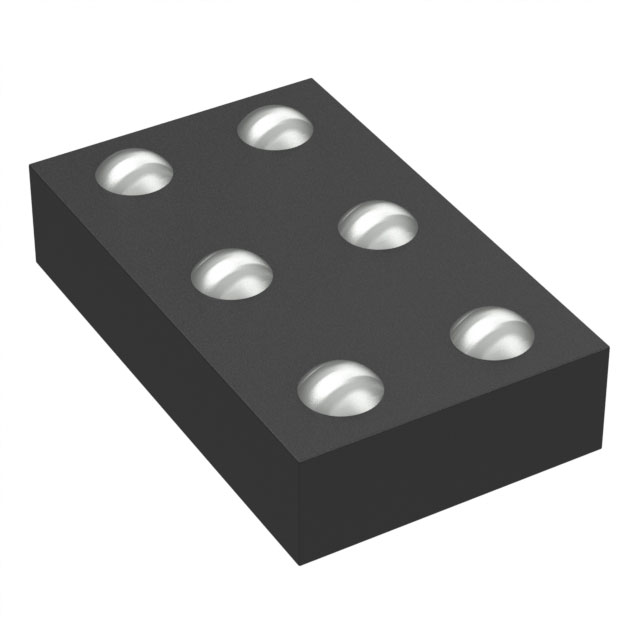

| Supplier Device Package | 6-FlipChip |
| Supplier Device Package [x] | 0.78 |
| Supplier Device Package [y] | 1.18 |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 1.1 V |
| Voltage Dropout (Max) [Max] | 0.08 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.28 | |||
| 2500 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.58 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.28 | |||
| 2500 | $ 0.26 | |||
| Tape & Reel (TR) | 5000 | $ 0.22 | ||
Description
General part information
LD57100 Series
The LD57100 is a high accuracy voltage regulator, which provides 1 A of current. It is equipped with an NMOS pass transistor, whose gate is biased by a dedicated pin, thus allowing the ultra-low drop performance even at very low input voltages.
It is available in Flip Chip6 (0.8x1.2 mm), maximizing the space saving. This device is stabilized with a small ceramic capacitor on the output. The ultra-low drop, low quiescent current and short-circuit protection make the LD57100 suitable for low power battery-operated applications.
An enable logic control function puts the LD57100 in shutdown mode allowing a total current consumption lower than 0.1 µA. Thermal protection is also included.
