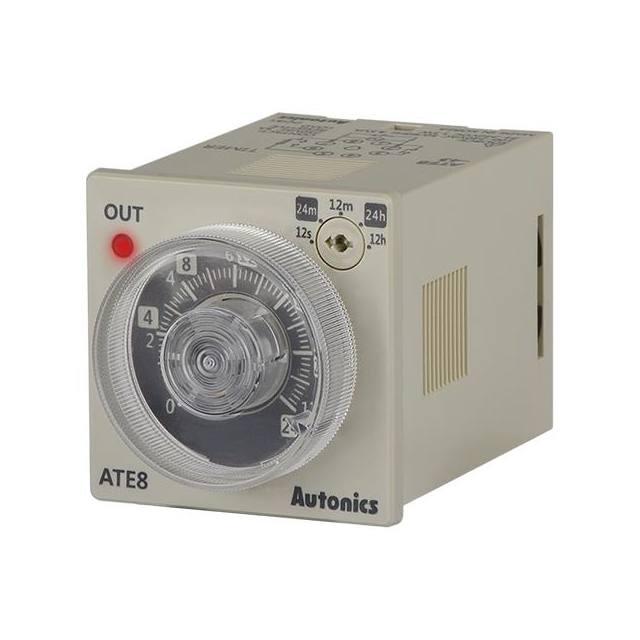

ATE8-4C

Active

AUTONICS

RELAY TIME DELAY 24HR 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 24HR 3A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay SPST-NO (1 Form A), SPDT (1 Form C) 12 Sec ~ 24 Hrs Delay 3A @ 250VAC Socketable

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ATE8-4C	ATE8-4 Series

Circuit	SPST-NO (1 Form A), SPDT (1 Form C)	SPST-NO (1 Form A), SPDT (1 Form C), DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 3 A	3 - 250 VAC
Delay Time [Max]	24 Hrs	1 - 24 Year
Delay Time [Min]	12 Sec	1 - 12 Sec
Function	On-Delay	On-Delay
Mounting Type	Socketable	Socketable
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial	Hand Dial
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply [Max]	240 VDC, 240 VAC	240 VDC
Voltage - Supply [Min]	100 VAC, 24 V	24 - 100 VAC

RELAY TIME DELAY 1HR 3A 250V

Part	Timing Adjustment Method	Function	Delay Time [Min]	Delay Time [Max]	Timing Initiate Method	Relay Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Contact Rating @ Voltage	Mounting Type	Circuit	Termination Style
AUTONICS ATE8-41	Hand Dial	On-Delay	1 Sec	1 Year	Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 250 VAC	Socketable	SPDT (1 Form C), SPST-NO (1 Form A)	Plug In, 8 Pin (Octal)
AUTONICS ATE8-43	Hand Dial	On-Delay	3 Sec	3 Hrs	Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 250 VAC	Socketable	SPDT (1 Form C), SPST-NO (1 Form A)	Plug In, 8 Pin (Octal)
AUTONICS ATE8-41D	Hand Dial	On-Delay	1 Sec	1 Year	Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 250 VAC	Socketable	DPDT (2 Form C)	Plug In, 8 Pin (Octal)
AUTONICS ATE8-46D	Hand Dial	On-Delay			Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 30 VDC, 250 VAC	Socketable	DPDT (2 Form C)	Plug In, 8 Pin (Octal)
AUTONICS ATE8-43D	Hand Dial	On-Delay			Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 30 VDC, 250 VAC	Socketable	DPDT (2 Form C)	Plug In, 8 Pin (Octal)
AUTONICS ATE8-46	Hand Dial	On-Delay			Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 30 VDC, 250 VAC	Socketable	SPDT (1 Form C), SPST-NO (1 Form A)	Plug In, 8 Pin (Octal)
AUTONICS ATE8-4C	Hand Dial	On-Delay	12 Sec	24 Hrs	Input Voltage	Mechanical Relay	240 VDC, 240 VAC	24 V, 100 VAC	3 A, 250 VAC	Socketable	SPDT (1 Form C), SPST-NO (1 Form A)	Plug In, 8 Pin (Octal)
