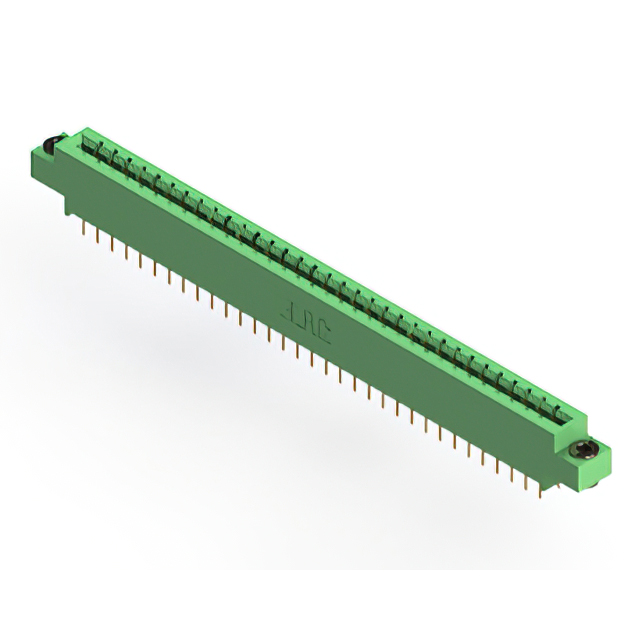

833-066-524-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

833-066-524-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-066-524-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

833-066 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Termination Rows	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Material	Card Type	Contact Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Mounting Type	Read Out	Termination	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 833-066-500-201	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Solder Eyelet(s)
EDAC Inc. 833-066-540-802	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Wire Wrap	3.25 mm	0.128 in
EDAC Inc. 833-066-500-802	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Solder Eyelet(s)	3.25 mm	0.128 in
EDAC Inc. 833-066-520-207	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Solder			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 833-066-521-202	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Solder			Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 833-066-541-202	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Wire Wrap			Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 833-066-558-803	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole Right Angle	Dual	Solder			Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 833-066-542-803	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Wire Wrap			Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 833-066-524-803	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole	Dual	Solder			Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 833-066-558-212	125 °C	-40 °C	0.156 in	3.96 mm	2	2	10 Áin	0.25 Ám	Gold	66	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Diallyl Phthalate (DAP)	33	Through Hole Right Angle	Dual	Solder	3.25 mm	0.128 in	Side Mount Opening Unthreaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 70.40
Newark	Each	1	$ 81.27
		100	$ 60.82
		250	$ 51.00
		500	$ 46.77
		1000	$ 39.38

Description

General part information

833-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources
