BSS-025-01-C-D-A-TR

Active

Samtec Inc.

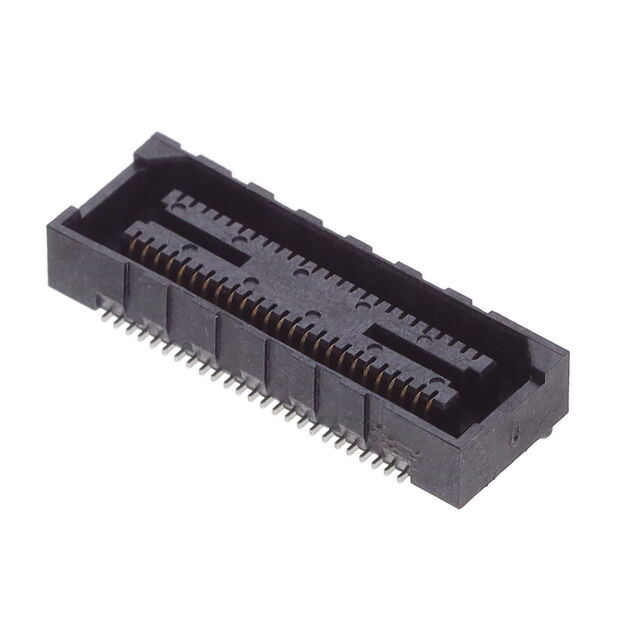

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSS-025-01-C-D-A-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Board Guide
Height Above Board	0.135 in
Height Above Board	3.43 mm
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Features	Connector Type
Samtec Inc. BSS-025-01-F-D-A-TR	2	3 Áin	0.076 Ám	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold	Board Guide	Socket Center Strip Contacts
Samtec Inc. BSS-025-01-L-D-A	2	10 Áin	0.25 Ám	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold	Board Guide	Socket Center Strip Contacts
Samtec Inc. BSS-025-01-L-D-LC	2	10 Áin	0.25 Ám	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold		Socket Center Strip Contacts
Samtec Inc. BSS-025-01-C-D-A-TR	2	50 µin	1.27 µm	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold	Board Guide	Socket Center Strip Contacts
Samtec Inc. BSS-025-01-L-D-A-TR	2	10 Áin	0.25 Ám	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold	Board Guide	Socket Center Strip Contacts
Samtec Inc. BSS-025-01-H-D-A	2	30 Áin	0.76 Ám	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold	Board Guide	Socket Center Strip Contacts
Samtec Inc. BSS-025-01-F-D	2	3 Áin	0.076 Ám	5 mm	0.64 mm	0.025 in	Surface Mount	50	0.135 in	3.43 mm	Gold		Socket Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	475	$ 6.37

General part information

50 Position Connector Socket, Center Strip Contacts Surface Mount Gold
