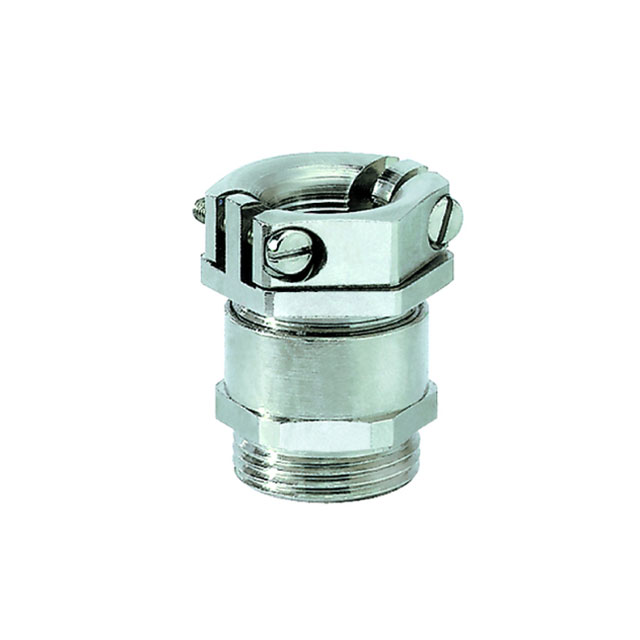

19.516M25

Active

Jacob GmbH

CABLE GLND 11.5-14.5MM M25 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLND 11.5-14.5MM M25 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	19.516M25

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max] [diameter]	0.571 in
Outside Cable Diameter (Max) [Max] [diameter]	14.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	11.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.453 "
Thread Length	7 mm
Thread Length	0.276 in
Thread Size	M25x1.5
Type	Cable Gland

CABLE GLND 11.5-14.5MM M25 BRASS

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Color	Ingress Protection	Type	Thread Length	Thread Length	Material	Operating Temperature [Max]	Operating Temperature [Min]
Jacob GmbH 19.516M25	0.571 in	14.5 mm	M25x1.5	11.5 mm	0.453 "	Sealing Ring	Silver	IP55 - Dust Protected, Water Resistant	Cable Gland	7 mm	0.276 in	Brass, Nickel Plated	100 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 8.27

General part information

Cable Gland Brass, Nickel Plated M25x1.5 Silver
