Description
General part information

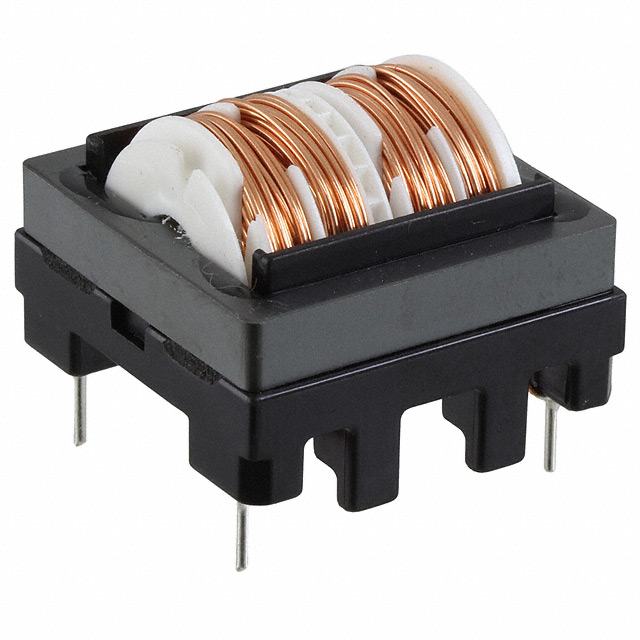

SS28H Series
45 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A DCR 650mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SS28H-R10450-CH |
|---|---|
| Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | 650 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.965 in |
| Inductance | 45 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.181 in |
| Size / Dimension Width | 1.181 in |
| Voltage Rating - AC | 250 V |
