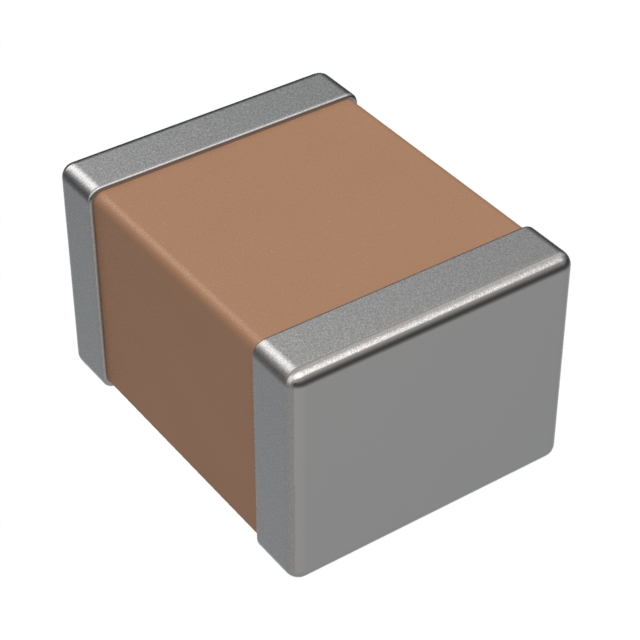

C1210H154J5GAC7800

Active

KEMET

CAP CER 0.15UF 50V C0G/NP0 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C1210H154J5GACTU +1

C1210H154J5GAC7800

Active

KEMET

CAP CER 0.15UF 50V C0G/NP0 1210

Deep-Dive with AI

DocumentsDatasheet C1210H154J5GACTU +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1210H154J5GAC7800

Applications	Downhole
Capacitance	0.15 ÁF
Features	High Temperature, Low ESL
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210
Package / Case	3225 Metric
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Temperature Coefficient	NP0, C0G
Thickness (Max)	1.9 mm
Thickness (Max) [Max]	0.075 in
Tolerance	5 %
Voltage - Rated	50 VDC

C1210H Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Features	Voltage - Rated	Applications	Capacitance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Thickness (Max)	Thickness (Max)	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Thickness (Max) [Max] [custom]
KEMET C1210H103J1GAC7800	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature Low ESL	100 V	Downhole	10000 pF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount	1.2 mm	0.047 in	5 %
KEMET C1210H272JDGAC7800	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature High Voltage Low ESL	1000 V	Downhole	2700 pF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount			5 %	2.8 mm	0.11 in	1 kV
KEMET C1210H562KCGACT500	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature High Voltage Low ESL	500 V	Downhole	5600 pF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount			10 %	2.2 mm	0.087 in
KEMET C1210H102J1GAC7800	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature Low ESL	100 V	Downhole	0.001 µF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount			5 %	0.88 mm	0.035 in
KEMET C1210H332J2GAC7800	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature Low ESL	200 V	Downhole	3300 pF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount	1.2 mm	0.047 in	5 %
KEMET C1210H562J2GAC7800	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature Low ESL	200 V	Downhole	5600 pF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount			5 %	1.4 mm			0.055 in
KEMET C1210H154J5GAC7800	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	3225 Metric	High Temperature Low ESL	50 VDC	Downhole	0.15 ÁF	C0G NP0	-55 °C	200 °C	MLCC Surface Mount	1.9 mm		5 %		0.075 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 15.13
	Digi-Reel®	1	$ 15.13
	Tape & Reel (TR)	2000	$ 9.36

Description

General part information

C1210H Series

0.15 µF ±5% 50V Ceramic Capacitor C0G, NP0 1210 (3225 Metric)

Documents

Technical documentation and resources

Datasheet

C1210H154J5GACTU

High Temp 200° C Product Bulletin

Datasheet
