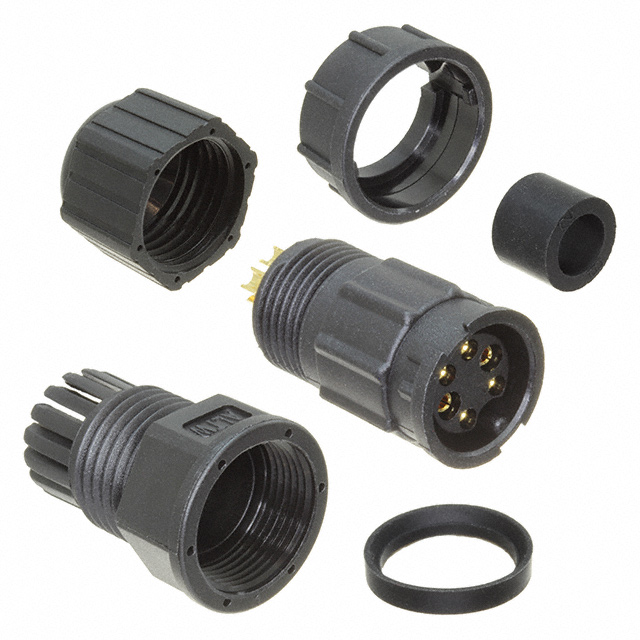

BBD-06BMFA-LL7001

Active

Amphenol LTW

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-06BMFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5A, 10A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Features	Current Rating (Amps)	Orientation	Number of Positions	Shell Material	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Mounting Type	Connector Type	Shell Size - Insert	Primary Material	Contact Material	Fastening Type	Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Backshell Material, Plating
Amphenol LTW BBD-06BMFA-LL7001	Backshell	10A 5A	Keyed	6	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	4.5 mm 6.5 mm	0.177 in 0.256 in	Unshielded	Free Hanging (In-Line)	Receptacle Female Sockets	B	Plastic	Copper Alloy	Bayonet Lock	Black	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
