10214-1210PE

Active

JE150317780 10214-1210PE=14/MDR/RC/RA/SMTRECP/M2.5/SCW/20MIN

Search across all available documentation for this part.

Active

JE150317780 10214-1210PE=14/MDR/RC/RA/SMTRECP/M2.5/SCW/20MIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10214-1210PE	10214 Series

Connector Style	-	Outer Shroud Contacts
Connector Type	-	Receptacle
Contact Finish	-	Gold
Contact Finish Thickness	-	0.2 - 0.76 Ám
Contact Finish Thickness	-	7.87 - 30 Áin
Features	-	Shielded, Board Lock, Board Guide
Flange Feature	-	Housing/Shell, Latchblocks, Housing/Shell (M2.5)
Flange Feature	-	2.6 M
Mounting Type	-	Through Hole, Panel Mount, Right Angle, Surface Mount, Right Angle
null		-
Number of Positions	-	14
Number of Rows	-	2
Termination	-	Press-Fit, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN RCPT 14POS PCB PRESS-FIT

Part	Connector Type	Mounting Type	Features	Connector Style	Flange Feature	Flange Feature	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Number of Rows
3M 10214-R21CS	Receptacle	Panel Mount, Through Hole	Shielded	Outer Shroud Contacts	Housing/Shell	2.6 M	14	0.76 Ám	30 Áin	Gold	Press-Fit	2
3M 10214-R21TS	Receptacle	Panel Mount, Through Hole	Shielded	Outer Shroud Contacts	Housing/Shell	2.6 M	14	0.76 Ám	30 Áin	Gold	Press-Fit	2
3M 10214-55G3PC	Receptacle	Panel Mount, Right Angle, Through Hole	Board Lock, Shielded	Outer Shroud Contacts	Housing/Shell	2.6 M	14	0.76 Ám	30 Áin	Gold	Solder	2
3M 10214-6202VC	Receptacle	Panel Mount, Through Hole	Shielded	Outer Shroud Contacts	Housing/Shell	2.6 M	14	0.76 Ám	30 Áin	Gold	Solder	2
3M 10214-1210PE
3M 10214-1210VE	Receptacle	Surface Mount, Right Angle	Board Guide, Shielded	Outer Shroud Contacts	Housing/Shell	2.6 M	14	0.76 Ám	30 Áin	Gold	Solder	2
3M 10214-55G3PL	Receptacle	Panel Mount, Right Angle, Through Hole	Board Lock, Shielded	Outer Shroud Contacts	Housing/Shell (M2.5), Latchblocks		14	0.2 µm	7.87 µin	Gold	Solder	2
3M 10214-55G3PL
3M 10214-1210PE	Receptacle	Surface Mount, Right Angle	Board Guide, Shielded	Outer Shroud Contacts	Housing/Shell	2.6 M	14	0.51 µm	20 µin	Gold	Solder	2
3M 10214-55G3PC

General part information

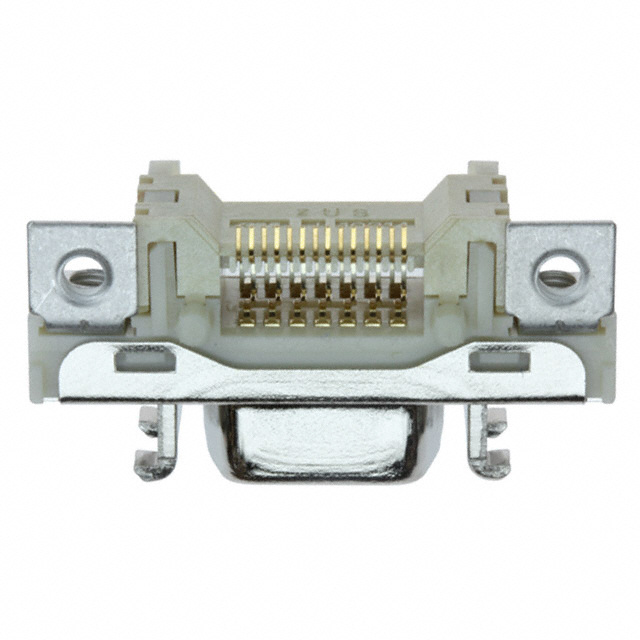

14 Position Receptacle Connector Surface Mount, Right Angle Solder
