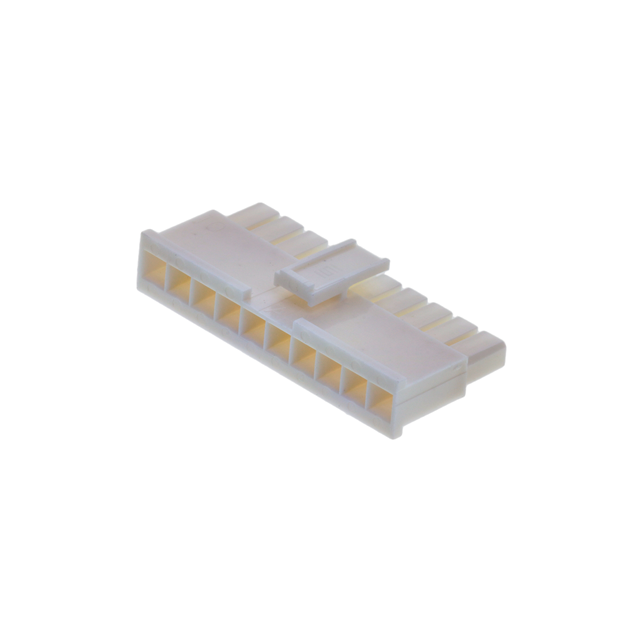

IPBD-10-S-K - IPBD-10-S-K

IPBD-10-S-K

Active
Samtec Inc.

HOUSING CONNECTOR, RCPT, 10POS, 4.19MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetIPBD Datasheet+3
IPBD-10-S-K - IPBD-10-S-K

IPBD-10-S-K

Active
Samtec Inc.

HOUSING CONNECTOR, RCPT, 10POS, 4.19MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetIPBD Datasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationIPBD-10-S-K
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
FeaturesPolarizing Key
Insulation MaterialPolyamide (PA), Nylon
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions10
Number of Rows1
Pitch [x]4.2 mm
Pitch [x]0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.45
10$ 1.10
25$ 0.99
50$ 0.92
100$ 0.85
250$ 0.77
500$ 0.76
NewarkEach 1$ 1.07
10$ 0.93
25$ 0.88
100$ 0.77
250$ 0.69
500$ 0.61
1000$ 0.54

Description

General part information

IPBD-10 Series

10 Rectangular Connectors - Housings Receptacle 0.165" (4.20mm)
