3159-4-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .045DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3159-4-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .045DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3159-4-00-15-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.092 in |
| Flange Diameter [diameter] | 2.34 mm |
| Insulation | Non-Insulated |
| Length - Above Flange | 4.78 mm |
| Length - Above Flange | 0.188 " |
| Length - Below Flange [x] | 0.156 in |
| Length - Below Flange [x] | 3.96 mm |
| Length - Overall [x] | 9.25 mm |
| Length - Overall [x] | 0.364 in |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.045 in |
| Pin Size - Above Flange [diameter] | 1.14 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.05 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| 3000 | $ 0.52 | |||
Description
General part information
3159-4 Series

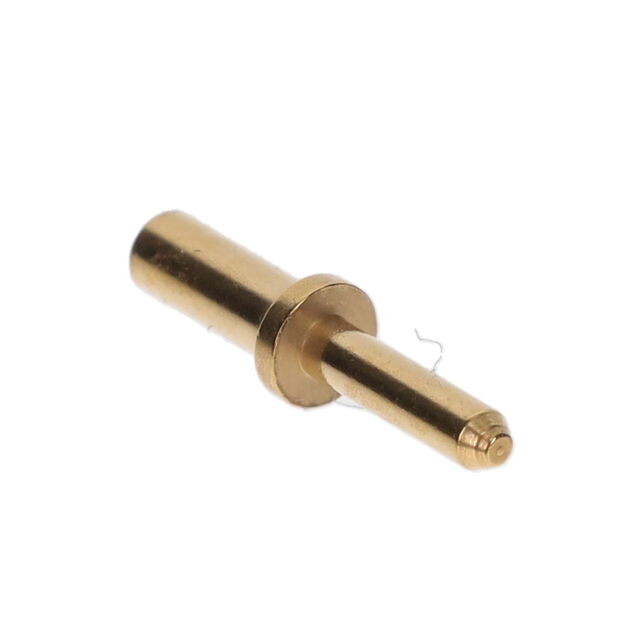

PC Pin Terminal Connector Through Hole Gold 0.045" (1.14mm) Dia
