DG2034EDN-T1-GE4

Active

Vishay Siliconix

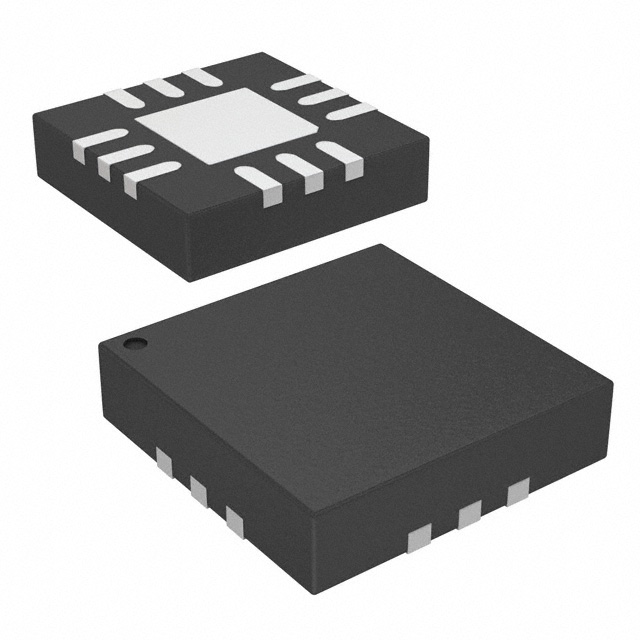

IC SWITCH SP4T X 1 2.5OHM 12QFN

Search across all available documentation for this part.

Active

Vishay Siliconix

IC SWITCH SP4T X 1 2.5OHM 12QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DG2034EDN-T1-GE4	DG2034 Series

-3db Bandwidth	166 MHz	166 MHz
Channel-to-Channel Matching (ΔRon)	20 mOhm	20 mOhm
Charge Injection	-2.6 pC	-2.6 pC
Crosstalk	-71 dB	-71 dB
Current - Leakage (IS(off)) (Max) [Max]	2 nA	2 nA
Mounting Type	Surface Mount	Surface Mount
Multiplexer/Demultiplexer Circuit	4:1	4:1
Number of Circuits	1	1
On-State Resistance (Max) [Max]	2.5 Ohms	2.5 Ohms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	12-VFQFN Exposed Pad	10-MSOP, 10-TFSOP, 12-VFQFN Exposed Pad
Package / Case	-	3 mm
Package / Case	-	0.118 in
Supplier Device Package	12-QFN (3x3)	10-MSOP, 12-QFN (3x3)
Switch Circuit	SP4T	SP4T
Switch Time (Ton, Toff) (Max) [custom]	20 ns	20 ns
Switch Time (Ton, Toff) (Max) [custom]	25 ns	25 ns
Voltage - Supply, Single (V+) [Max]	5.5 V	5.5 V
Voltage - Supply, Single (V+) [Min]	1.8 V	1.8 V

IC SWITCH SP4T X 1 2.5OHM 10MSOP

Part	Package / Case	Package / Case [x]	Package / Case [x]	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Charge Injection	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	-3db Bandwidth	Crosstalk	Current - Leakage (IS(off)) (Max) [Max]	Supplier Device Package	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	On-State Resistance (Max) [Max]	Switch Circuit
Vishay Siliconix DG2034EDQ-T1-GE3	10-MSOP, 10-TFSOP	3 mm	0.118 in	4:1	20 mOhm	1.8 V	5.5 V	-2.6 pC	85 °C	-40 °C	Surface Mount	166 MHz	-71 dB	2 nA	10-MSOP	20 ns	25 ns	1	2.5 Ohms	SP4T
Vishay Siliconix DG2034EDN-T1-GE4	12-VFQFN Exposed Pad			4:1	20 mOhm	1.8 V	5.5 V	-2.6 pC	85 °C	-40 °C	Surface Mount	166 MHz	-71 dB	2 nA	12-QFN (3x3)	20 ns	25 ns	1	2.5 Ohms	SP4T
