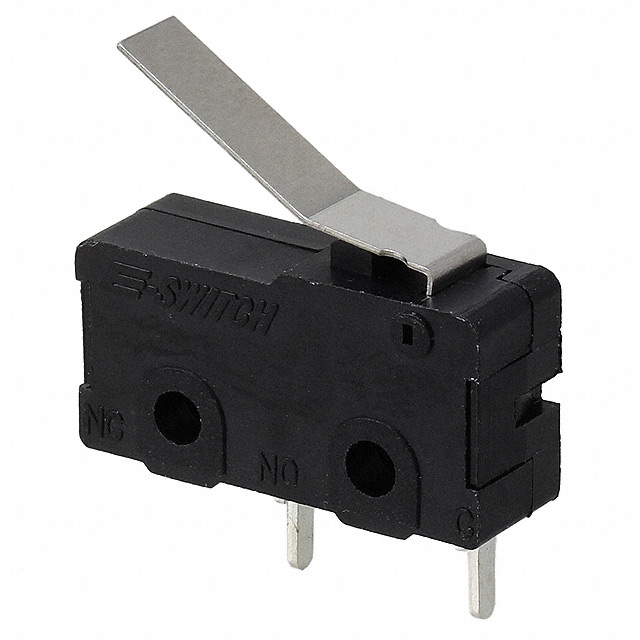

MS0850506F020P1C - MS0850506F020P1C

MS0850506F020P1C

Active
E-Switch

SPST - NORMALLY OPEN 125V PLUGIN LIMIT SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

MS0850506F020P1C - MS0850506F020P1C

MS0850506F020P1C

Active
E-Switch

SPST - NORMALLY OPEN 125V PLUGIN LIMIT SWITCHES ROHS

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationMS0850506F020P1C
Actuator TypeLeaf, Lever
CircuitSPST-NO
Current Rating (Amps)5 A
Electrical Life50000 Cycles
Mechanical Life1000000 Cycles
Mounting TypeThrough Hole
Operating Force20 gf
Operating Position13.9 mm
Operating Position0.547 in
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Pretravel4.1 mm
Pretravel0.161 in
Release Force8 gf
Switch FunctionOff-Mom
Termination StylePC Pin
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.03
10$ 0.97
25$ 0.94
50$ 0.90
100$ 0.86
270$ 0.69
LCSCPiece 1$ 1.23
270$ 0.49
540$ 0.47
1080$ 0.47

Description

General part information

MS0850506 Series

Switch SPST-NO Through Hole

Documents

Technical documentation and resources

No documents available
