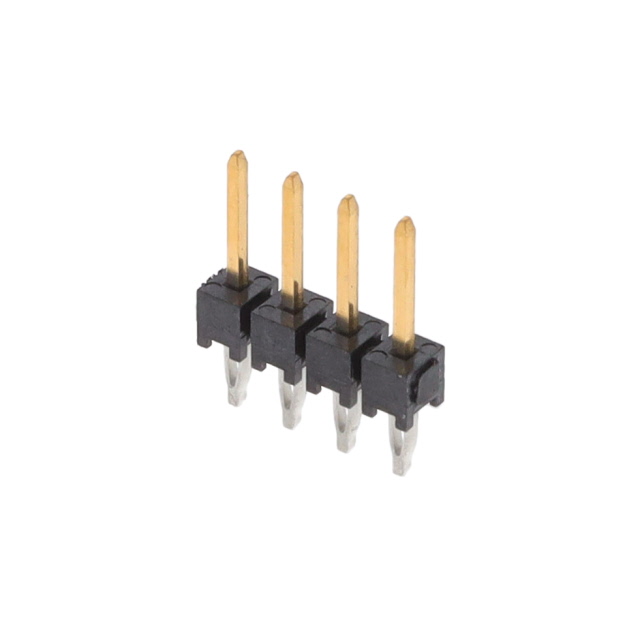

PHT-104-01-L-S

Active

Samtec Inc.

CONN HDR .100" 4POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPHF Series Other Related Documents 03 Datasheet +2

PHT-104-01-L-S

Active

Samtec Inc.

CONN HDR .100" 4POS

Deep-Dive with AI

DocumentsPHF Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHT-104-01-L-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.452 "
Overall Contact Length	11.48 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder, Press-Fit

PHT-104 Series

Part	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Termination	Contact Type	Current Rating (Amps)	Mounting Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Connector Type	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height
Samtec Inc. PHT-104-03-L-S	1	0.3 in	7.62 mm	Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.652 in	16.56 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	4	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	10 çin	0.25 çm
Samtec Inc. PHT-104-04-L-D	2			Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.752 in	19.1 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	8	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	10 çin	0.25 çm	2.54 mm	0.1 in	0.4 in	10.16 mm
Samtec Inc. PHT-104-01-L-S	1			Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.452 "	11.48 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	4	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	10 çin	0.25 çm			0.1 in	2.54 mm
Samtec Inc. PHT-104-02-L-D	2			Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.552 in	14.02 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	8	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	10 çin	0.25 çm	2.54 mm	0.1 in
Samtec Inc. PHT-104-01-S-S	1			Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.452 "	11.48 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	4	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	30 Áin	0.76 Ám			0.1 in	2.54 mm
Samtec Inc. PHT-104-01-S-D	2			Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.452 "	11.48 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	8	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. PHT-104-04-L-S	1			Gold	-55 °C	125 °C	Unshrouded	Black	All	UL94 V-0	0.23 in	5.84 mm	Press-Fit Solder	Male Pin	4.8 A	Through Hole	Tin	0.752 in	19.1 mm	Header	Liquid Crystal Polymer (LCP)	0.122 "	3.1 mm	4	Square	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	10 çin	0.25 çm			0.4 in	10.16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.29
		50	$ 1.00
		100	$ 0.81
		500	$ 0.69
		1000	$ 0.64
