SRP1270 Series

Part	Type	Inductance	Height - Seated (Max)	Tolerance	Size / Dimension Length	Size / Dimension Width	Frequency - Self Resonant	Current - Saturation (Isat)	Mounting Type	DC Resistance (DCR) (Max)	Package / Case	Material - Core	Shielding	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Inductance Frequency - Test
Bourns Inc. SRP1270-5R6M	Drum Core Wirewound	5.6 µH	0.276 in	20 %	0.539 in	0.539 in	13 MHz	26.5 A	Surface Mount	10 mOhm	Nonstandard	Iron	Shielded	14 A	125 °C	-55 °C	100 kHz
Bourns Inc. SRP1270-R47M	Drum Core Wirewound	470 nH	0.276 in	20 %	0.539 in	0.539 in	85 MHz	65 A	Surface Mount	1.2 mOhm	Nonstandard	Iron	Shielded	41 A	125 °C	-55 °C	100 kHz
Bourns Inc. SRP1270-3R3M	Drum Core Wirewound	3.3 µH	0.276 in	20 %	0.539 in	0.539 in	20 MHz	35 A	Surface Mount	6.6 mOhm	Nonstandard	Iron	Shielded	18 A	125 °C	-55 °C	100 kHz
Bourns Inc. SRP1270-1R5M	Drum Core Wirewound	1.5 µH	0.276 in	20 %	0.539 in	0.539 in	31 MHz	48 A	Surface Mount	2.6 mOhm	Nonstandard	Iron	Shielded	27 A	125 °C	-55 °C	100 kHz

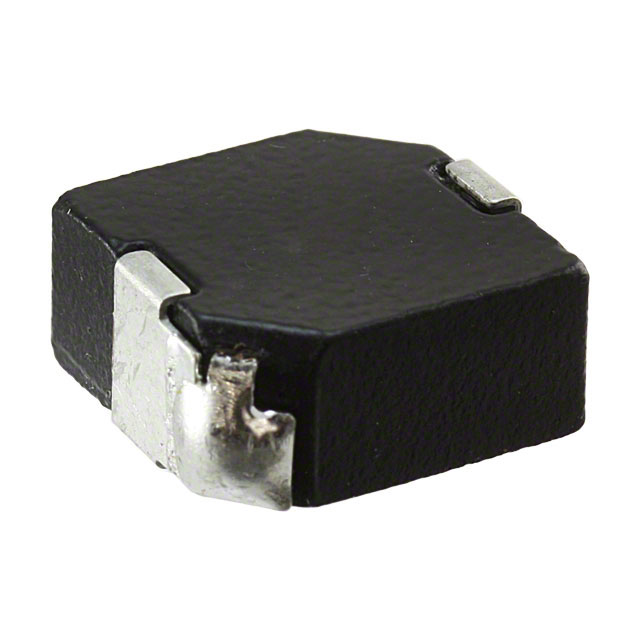

Bourns Inc. SRP1270-R32M	Drum Core Wirewound	320 nH	0.276 in	20 %	0.539 in	0.539 in	95 MHz	65 A	Surface Mount	0.9 mOhm	Nonstandard	Iron	Shielded	46 A	125 °C	-55 °C	100 kHz
Bourns Inc. SRP1270-6R8M	Drum Core Wirewound	6.8 µH	0.276 in	20 %	0.539 in	0.539 in	12 MHz	21 A	Surface Mount	14 mOhm	Nonstandard	Iron	Shielded	12 A	125 °C	-55 °C	100 kHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
