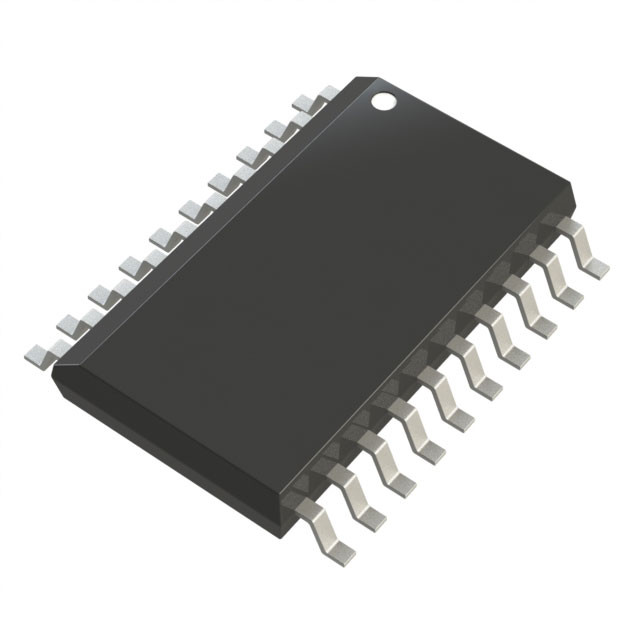

LTC7545ALSW#PBF

Active

Analog Devices

IMPROVED INDUSTRY STANDARD PARALLEL 12-BIT MULTIPLYING DAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R391 Reliability Data

LTC7545ALSW#PBF

Active

Analog Devices

IMPROVED INDUSTRY STANDARD PARALLEL 12-BIT MULTIPLYING DAC

Deep-Dive with AI

DocumentsDatasheet R391 Reliability Data

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTC7545ALSW#PBF

Architecture	R-2R
Data Interface	Parallel
Differential Output	False
INL/DNL (LSB)	±0.5
Mounting Type	Surface Mount
Number of Bits	12 bits
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	Current - Unbuffered
Package / Case	20-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Reference Type	External
Settling Time	1 µs
Supplier Device Package	20-SO
Voltage - Supply, Analog	5 V
Voltage - Supply, Analog [Max]	15.75 V
Voltage - Supply, Analog [Min]	14.25 V
Voltage - Supply, Digital	5 V
Voltage - Supply, Digital [Max]	15.75 V
Voltage - Supply, Digital [Min]	14.25 V

LTC7545A Series

Improved Industry Standard Parallel 12-Bit Multiplying DAC

Part	Differential Output	Number of Bits	Architecture	Settling Time	INL/DNL (LSB)	Mounting Type	Reference Type	Supplier Device Package	Output Type	Package / Case	Package / Case [y]	Package / Case [y]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog	Data Interface	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices LTC7545ALSW#TRPBF		12 bits	R-2R	1 µs	±0.5	Surface Mount	External	20-SO	Current - Unbuffered	20-SOIC	0.295 in	7.5 mm	14.25 V	15.75 V	5 V	Parallel	14.25 V	15.75 V	5 V	70 °C	0 °C
Analog Devices LTC7545ALSW#PBF		12 bits	R-2R	1 µs	±0.5	Surface Mount	External	20-SO	Current - Unbuffered	20-SOIC	0.295 in	7.5 mm	14.25 V	15.75 V	5 V	Parallel	14.25 V	15.75 V	5 V	70 °C	0 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.45
		10	$ 9.53
		25	$ 8.52
		100	$ 7.39
		250	$ 6.84
		500	$ 6.51
		1000	$ 6.31

Description

General part information

LTC7545A Series

The LTC7545A is a 12-bit multiplying digital-to-analog converter (DAC) with a microprocessor compatible parallel input. It is a superior pin compatible replacement for the industry standard AD7545A and AD7545. Improvements include better accuracy, better stability over temperature and supply variations and lower sensitivity to output amplifier offset.This very versatile DAC is useful for 2-quadrant and 4-quadrant multiplying, programmable gain and filtering and single supply noninverting voltage output operation.Parts are available in 20-pin PDIP and SO packages and commercial and industrial temperature grades.ApplicationsProcess Control and Industrial AutomationSoftware Controlled Gain AdjustmentDigitally Controlled Filter and Power SuppliesAutomatic Test Equipment
