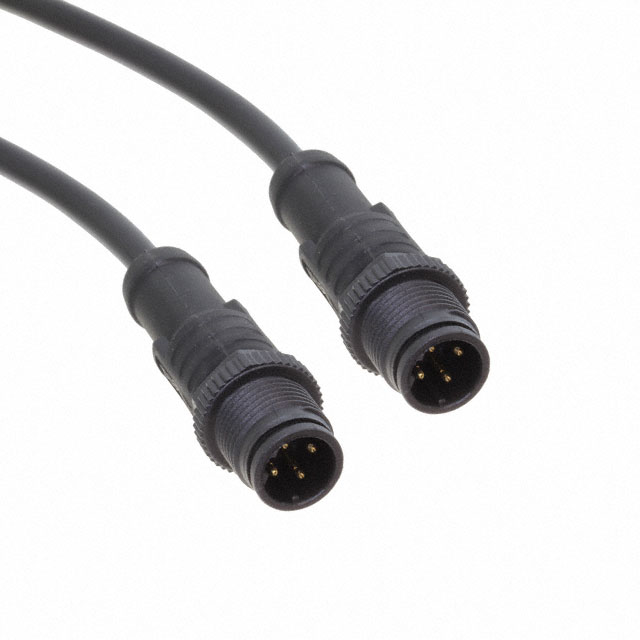

MSDP04ML-SDPML-SBA05

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, D CODE, PLASTIC, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MSDP04ML-SDPML-SBA05

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, D CODE, PLASTIC, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSDP04ML-SDPML-SBA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	D
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

MSDP04ML Series

Part	Color	Cable Type	2nd Connector Type	2nd Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Mounting Type	1st Connector Number of Positions Loaded	2nd Connector Number of Positions Loaded	Length [x]	Length [x]	2nd Connector Shell Size - Insert	1st Connector Gender	Usage	Cable Material	Assembly Configuration	Ingress Protection	1st Connector Type	1st Connector Number of Positions	1st Connector Orientation	2nd Connector Orientation	Shielding	2nd Connector Number of Positions	2nd Connector Gender
Amphenol LTW MSDP04ML-SDPML-SBA05	Black	Round	Receptacle	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	All	1.64 ft	500 mm	M12	Male Pins	Industrial Environments	Polyurethane (PUR)	Standard	IP68 IP69K	Receptacle	4	D	D	Unshielded	4
Amphenol LTW MSDP04ML-SDPFL-SD001	Black	Round	Plug	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	All	3.28 ft	1 m	M12	Male Pins	Industrial Environments	Polyvinyl Chloride (PVC)	Standard	IP68 IP69K	Receptacle	4	D	D	Unshielded	4	Female Sockets
Amphenol LTW MSDP04ML-SDPFL-SBA05	Black	Round	Plug	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	All	1.64 ft	500 mm	M12	Male Pins	Industrial Environments	Polyurethane (PUR)	Standard	IP68 IP69K	Receptacle	4	D	D	Unshielded	4	Female Sockets
Amphenol LTW MSDP04ML-SDPML-SDA05	Black	Round	Receptacle	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	All	1.64 ft	500 mm	M12	Male Pins	Industrial Environments	Polyvinyl Chloride (PVC)	Standard	IP68 IP69K	Receptacle	4	D	D	Unshielded	4
Amphenol LTW MSDP04ML-SDPFL-SB001	Black	Round	Plug	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	All	3.28 ft	1 m	M12	Male Pins	Industrial Environments	Polyurethane (PUR)	Standard	IP68 IP69K	Receptacle	4	D	D	Unshielded	4	Female Sockets
Amphenol LTW MSDP04ML-SDPML-SB001	Black	Round	Receptacle	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	All	3.28 ft	1 m	M12	Male Pins	Industrial Environments	Polyurethane (PUR)	Standard	IP68 IP69K	Receptacle	4	D	D	Unshielded	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.57
		10	$ 7.71
Newark	Each	10	$ 10.98
		25	$ 9.99
		50	$ 9.36
		100	$ 9.00
		250	$ 8.21
TME	N/A	1	$ 16.96
		10	$ 15.07
		20	$ 13.19

Description

General part information

MSDP04ML Series

Cable Assembly 1.64' (500.00mm)
