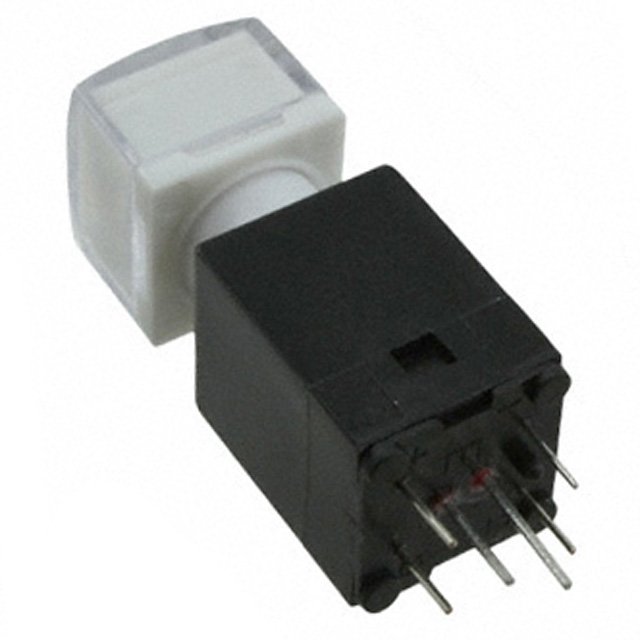

LP16OA1BSTWB

Active

E-Switch

SWITCH PUSH SPST-NO 0.1A 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 0.1A 20V

Technical Specifications

Parameters and characteristics for this part

Specification	LP16OA1BSTWB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3 VDC
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-5 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	20 V

Part	Actuator Type	Type	Mounting Type	Color - Actuator/Cap	Circuit	Illumination Voltage (Nominal)	Actuator Marking	Illumination Type, Color	Electrical Life	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)
E-Switch LP16OA1ASTWB	Button Square	Illuminated Standard	Through Hole	Clear	SPST-NO	3 VDC	No Marking	Blue LED	50000000 Cycles	Off-Mom	PC Pin	-5 °C	60 °C	20 V	100 mA
E-Switch LP16OA1BSTWR	Button Square	Illuminated Standard	Through Hole	Clear	SPST-NO	1.95 VDC	No Marking	LED Red	50000000 Cycles	Off-Mom	PC Pin	-5 °C	60 °C	20 V	100 mA
E-Switch LP16OA1BSTWG	Button Square	Illuminated Standard	Through Hole	Clear	SPST-NO	3.3 VDC	No Marking	Green LED	50000000 Cycles	Off-Mom	PC Pin	-5 °C	60 °C	20 V	100 mA
E-Switch LP16OA1ASTWG	Button Square	Illuminated Standard	Through Hole	Clear	SPST-NO	3.3 VDC	No Marking	Green LED	50000000 Cycles	Off-Mom	PC Pin	-5 °C	60 °C	20 V	100 mA
E-Switch LP16OA1ASTWR	Button Square	Illuminated Standard	Through Hole	Clear	SPST-NO	1.95 VDC	No Marking	LED Red	50000000 Cycles	Off-Mom	PC Pin	-5 °C	60 °C	20 V	100 mA
E-Switch LP16OA1BSTWB	Button Square	Illuminated Standard	Through Hole	Clear	SPST-NO	3 VDC	No Marking	Blue LED	50000000 Cycles	Off-Mom	PC Pin	-5 °C	60 °C	20 V	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.47

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole

Technical documentation and resources

No documents available
