1106434-4
ActiveTE Connectivity AMP Connectors

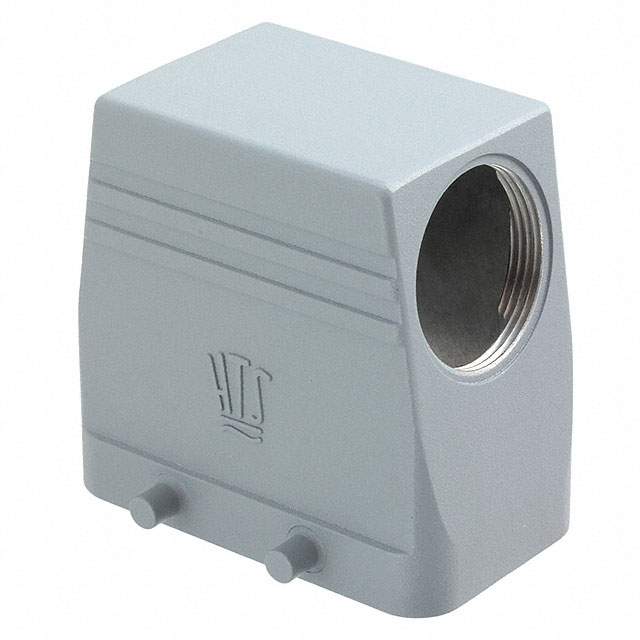

CONN HOOD SIDE ENTRY SZ4 M32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106434-4
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ4 M32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106434-4 | 1106434 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Die Cast, Aluminum | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom |
| Size | 4 | 4 |
| Size / Dimension [x] | 2.874 in | 2.874 in |
| Size / Dimension [x] | 73 mm | 73 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 2.756 in | 2.756 in |
| Size / Dimension [z] | 70 mm | 70 mm |
| Style | Side Entry | Top Entry, Side Entry |
| Thread Size | M32 | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 49.69 | |
1106434 Series
CONN HOOD TOP ENTRY SZ4 M32
| Part | Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Connector Type | Ingress Protection | Housing Finish | Thread Size | Housing Color | Lock Location | Size | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106434-2 | Top Entry | 2.874 in | 1.693 in | 2.756 in | 70 mm | 43 mm | 73 mm | Hood | IP65 - Dust Tight, Water Resistant | Powder Coated | M32 | Gray | Locking Clip (1) on Base Bottom | 4 | Aluminum, Die Cast |
TE Connectivity AMP Connectors 1106434-5 | Side Entry | 2.874 in | 1.693 in | 2.756 in | 70 mm | 43 mm | 73 mm | Hood | IP65 - Dust Tight, Water Resistant | Powder Coated | M32 | Gray | Locking Clip (1) on Base Bottom | 4 | Aluminum, Die Cast |
TE Connectivity AMP Connectors 1106434-4 | Side Entry | 2.874 in | 1.693 in | 2.756 in | 70 mm | 43 mm | 73 mm | Hood | IP65 - Dust Tight, Water Resistant | Powder Coated | M32 | Gray | Locking Clip (2) on Base Bottom | 4 | Aluminum, Die Cast |
Description
General part information
1106434 Series
Hood Connector Side Entry M32 4 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
