EDAC Inc.

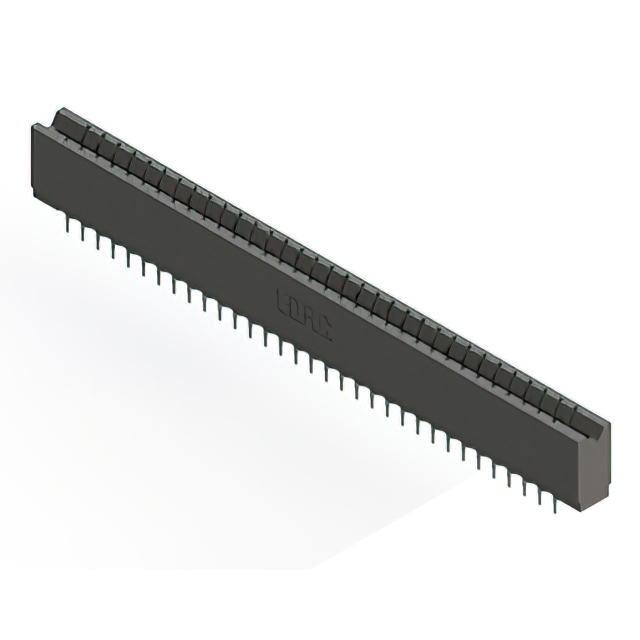

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 66 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Search across all available documentation for this part.

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 66 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	737-066-520-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

Part	Color	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Termination Rows	Number of Positions	Pitch [x]	Pitch [x]	Material - Insulation	Gender	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Card Type	Number of Rows
EDAC Inc. 737-066-525-206	Black	Dual	Cantilever	0.76 Ám	30 Áin	Gold	-40 °C	105 ░C	Press-Fit	Copper Alloy	2	66	0.156 in	3.96 mm	Polyester Thermoplastic	Female	33	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	2
EDAC Inc. 737-066-545-206	Black	Dual	Cantilever	0.76 Ám	30 Áin	Gold	-40 °C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	2	66	0.156 in	3.96 mm	Polyester Thermoplastic	Female	33	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	2
EDAC Inc. 737-066-522-201	Black	Dual	Cantilever	0.76 Ám	30 Áin	Gold	-40 °C	105 ░C	Press-Fit	Copper Alloy	2	66	0.156 in	3.96 mm	Polyester Thermoplastic	Female	33	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	2
EDAC Inc. 737-066-520-206	Black	Dual	Cantilever	0.76 Ám	30 Áin	Gold	-40 °C	105 ░C	Press-Fit	Copper Alloy	2	66	0.156 in	3.96 mm	Polyester Thermoplastic	Female	33	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	2
EDAC Inc. 737-066-541-201	Black	Dual	Cantilever	0.76 Ám	30 Áin	Gold	-40 °C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	2	66	0.156 in	3.96 mm	Polyester Thermoplastic	Female	33	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Non Specified - Dual Edge	2
