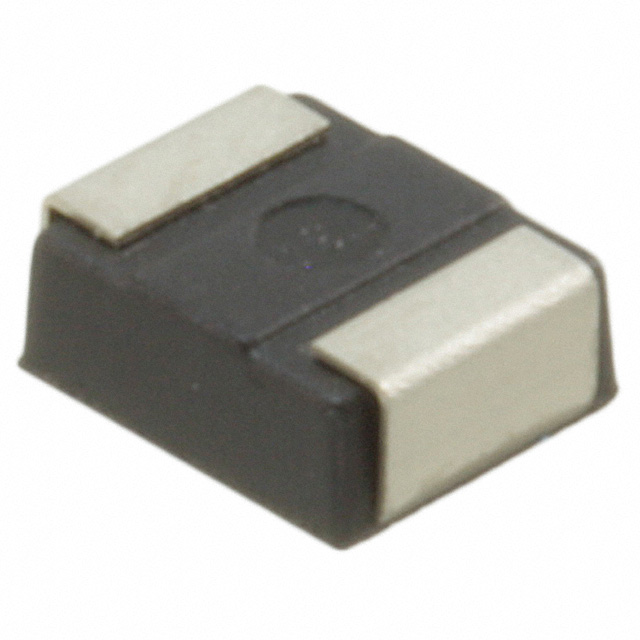

4TPG220M

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLYMER 220UF 4VDC B15G CASE 20%( 3.5 X 2.8 X 1.4MM) INWARD L SMD 3528-15 0.07 OHM 105°C T/R

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLYMER 220UF 4VDC B15G CASE 20%( 3.5 X 2.8 X 1.4MM) INWARD L SMD 3528-15 0.07 OHM 105°C T/R

Technical Specifications

Parameters and characteristics for this part

Specification	4TPG220M

Capacitance	220 µF
ESR (Equivalent Series Resistance)	70 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Manufacturer Size Code	B15G
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	4 V

Part	Voltage - Rated	Features	Capacitance	Tolerance	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Manufacturer Size Code
Panasonic Industrial Automation Sales 4TPG220M	4 V	General Purpose	220 µF	20 %	70 mOhm	105 ░C	-55 °C	Molded	1.5 mm	0.059 "	1411	3528 Metric	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	B15G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CAP TANT POLYMER 220UF 4VDC B15G CASE 20%( 3.5 X 2.8 X 1.4MM) INWARD L SMD 3528-15 0.07 OHM 105°C T/R

Technical documentation and resources
