G3T29A Series

Part	Actuator Material	Electrical Life (Cycles)	Voltage Rating - AC	Actuator Length	Features	Bushing Thread	Actuator Type	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Voltage Rating - DC	Current Rating	Illumination	Circuit	Mounting Type
NKK Switches G3T29AB-S	Polyphenylene Sulfide (PPS)	50000	28 V	3.81 mm	Process Sealed	Unthreaded	Standard Round	On-Off-Mom	85 °C	-30 °C	Gull Wing	28 V	0.4 VA	Non-Illuminated	DPDT	Surface Mount
NKK Switches G3T29AP	Polyphenylene Sulfide (PPS)	50000	28 V	3.81 mm	Process Sealed	Unthreaded	Standard Round	On-Off-Mom	85 °C	-30 °C	Gull Wing	28 V	0.4 VA	Non-Illuminated	DPDT	Surface Mount

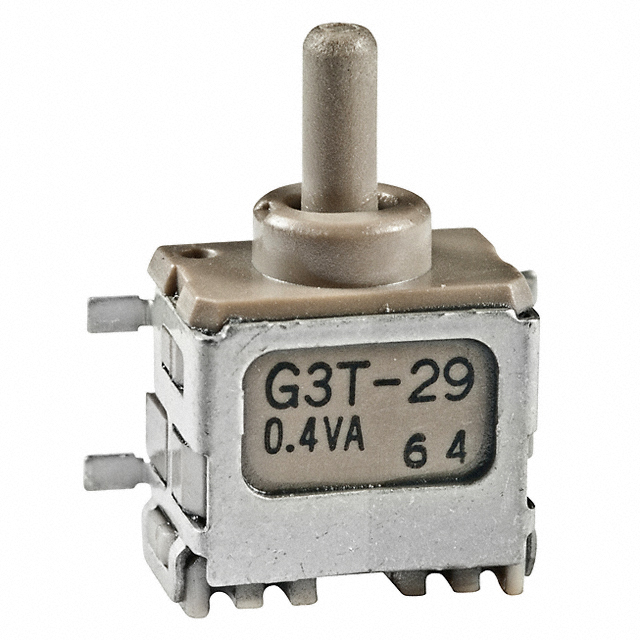

NKK Switches G3T29AH-R	Polyphenylene Sulfide (PPS)	50000	28 V	3.81 mm	Process Sealed	Unthreaded	Standard Round	On-Off-Mom	85 °C	-30 °C	Gull Wing	28 V	0.4 VA	Non-Illuminated	DPDT	Right Angle Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
