TSA-P-800MA

Active

OptiFuse

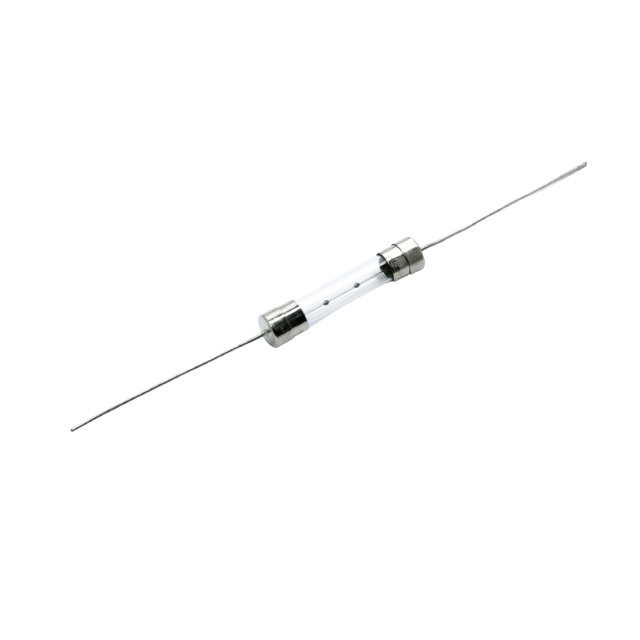

FUSE GLASS 800MA 250VAC 3AB 3AG

Search across all available documentation for this part.

Active

OptiFuse

FUSE GLASS 800MA 250VAC 3AB 3AG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSA-P-800MA	TSA-P Series

Approval Agency	UL 248	UL 248
Breaking Capacity @ Rated Voltage	100 A	100 A
Current Rating (Amps)	800 mA	1.5 - 800 mA
Melting I˛t	1.542	1.542 - 10.02
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	3AG, 3AB	3AG, 3AB
Package / Case [x]	1/4	1/4
Package / Case [y]	1-1/4	1-1/4
Response Time	Slow Blow	Slow Blow
Size / Dimension [diameter]	6.85 mm	6.85 mm
Size / Dimension [diameter]	0.27 in	0.27 in
Size / Dimension [x]	32.4 mm	32.4 mm
Size / Dimension [x]	1.276 in	1.276 in
Voltage Rating - AC	250 V	250 V

FUSE GLASS 800MA 250VAC 3AB 3AG

Part	Current Rating (Amps)	Voltage Rating - AC	Package / Case [x]	Package / Case [y]	Package / Case	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Melting I˛t	Response Time	Mounting Type	Breaking Capacity @ Rated Voltage
OptiFuse TSA-P-800MA	800 mA	250 V	1/4	1-1/4	3AB, 3AG	6.85 mm	32.4 mm	0.27 in	1.276 in	UL 248	-55 °C	125 °C	1.542	Slow Blow	Through Hole	100 A
OptiFuse TSA-P-1.5A	1.5 A	250 V	1/4	1-1/4	3AB, 3AG	6.85 mm	32.4 mm	0.27 in	1.276 in	UL 248	-55 °C	125 °C	10.02	Slow Blow	Through Hole	100 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

800 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
