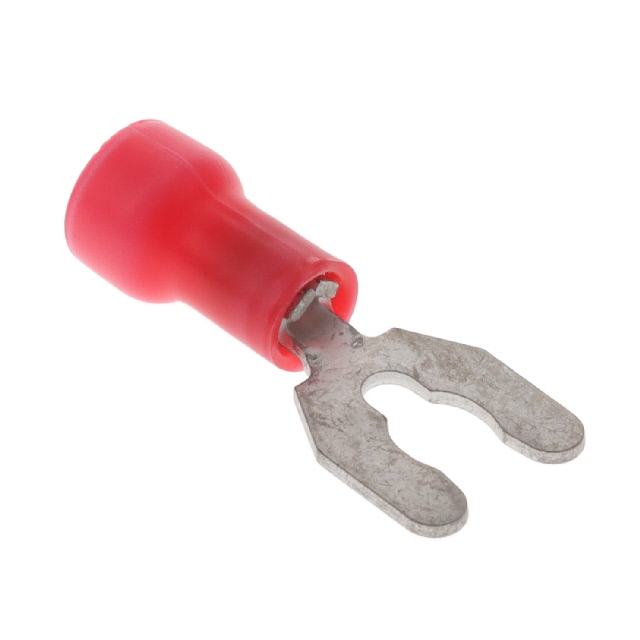

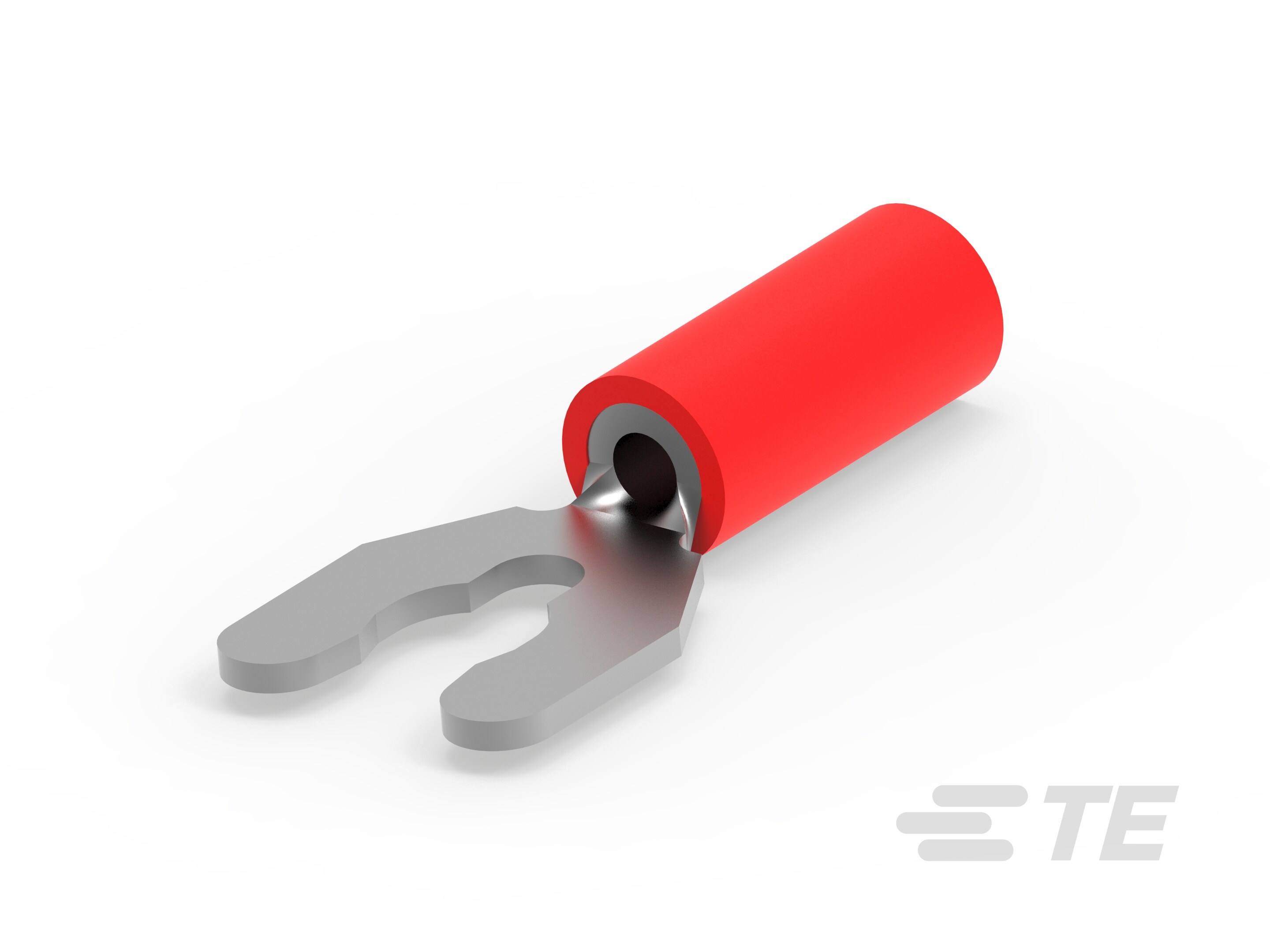

52950-2

Active

TE Connectivity Raychem Cable Protection

PG SPR SPD 22-16COMM22-18MIL 8 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

52950-2

Active

TE Connectivity Raychem Cable Protection

PG SPR SPD 22-16COMM22-18MIL 8 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	52950-2

Color	Red
Contact Finish	Tin
Contact Material	Brass
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter [Max]	5.08 mm
Insulation Diameter [Max]	0.2 "
Insulation Diameter [Min]	0.15 "
Insulation Diameter [Min]	3.81 mm
Length - Overall [x]	23.39 mm
Length - Overall [x]	0.921 "
Length - Ring Center to Termination [x]	0.281 in
Length - Ring Center to Termination [x]	7.14 mm
Length - Termination [x]	0.465 in
Length - Termination [x]	11.81 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Width - Outer Edges [x]	0.375 in
Width - Outer Edges [x]	9.53 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

PLASTI-GRIP Series

Terminals TERMINAL R PVF2 PG

Part	Length - Termination	Length - Termination	Contact Material	Terminal Type	Termination	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Finish	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall [x]	Length - Overall [x]	Features	Stud/Tab Size	Material - Insulation	Stud/Tab Size	Insulation Diameter [Max] [diameter]	Thickness	Thickness	Length - Termination [x]	Length - Termination [x]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]
TE Connectivity Raychem Cable Protection 8-52950-1	10.57 mm	0.416 in	Brass	Snap Spring	Crimp	Insulated	0.375 in	9.53 mm	Free Hanging (In-Line)	22 AWG	16 AWG	Red	0.281 in	7.14 mm	Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	22.15 mm	0.872 "	Serrated Termination	8 Stud	Poly-Vinyl Chloride (PVC)
TE Connectivity Raychem Cable Protection 34090			Copper	Slotted	Crimp	Insulated	0.218 in	5.54 mm	Free Hanging (In-Line)	22 AWG	16 AWG	Red			Tin	0.125 "	0.08 in		2.03 mm	16.71 mm	0.658 in	Serrated Termination		Poly-Vinyl Chloride (PVC)	6 Stud	3.18 mm	0.031 in	0.79 mm
TE Connectivity Raychem Cable Protection 52950-2			Brass	Snap Spring	Crimp	Insulated	0.375 in	9.53 mm	Free Hanging (In-Line)	22 AWG	16 AWG	Red	0.281 in	7.14 mm	Tin					23.39 mm	0.921 "	Serrated Termination	8 Stud	Poly-Vinyl Chloride (PVC)					0.465 in	11.81 mm	0.15 "	5.08 mm	3.81 mm	0.2 "
TE Connectivity Raychem Cable Protection 52950-3			Brass	Snap Spring	Crimp	Insulated	0.375 in	9.53 mm	Free Hanging (In-Line)	22 AWG	16 AWG	Red	0.281 in	7.14 mm	Tin					23.39 mm	0.921 "	Serrated Termination	8 Stud	Poly-Vinyl Chloride (PVC)					0.465 in	11.81 mm	0.15 "	5.08 mm	3.81 mm	0.2 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.28
		25	$ 0.28
		50	$ 0.27
		100	$ 0.23
		250	$ 0.21
		500	$ 0.20
Newark	Each	5000	$ 0.33

Description

General part information

PLASTI-GRIP Series

Terminals TERMINAL R PVF2 PG

Documents

Technical documentation and resources
