9-1377173-5

Active

TE Connectivity Raychem Cable Protection

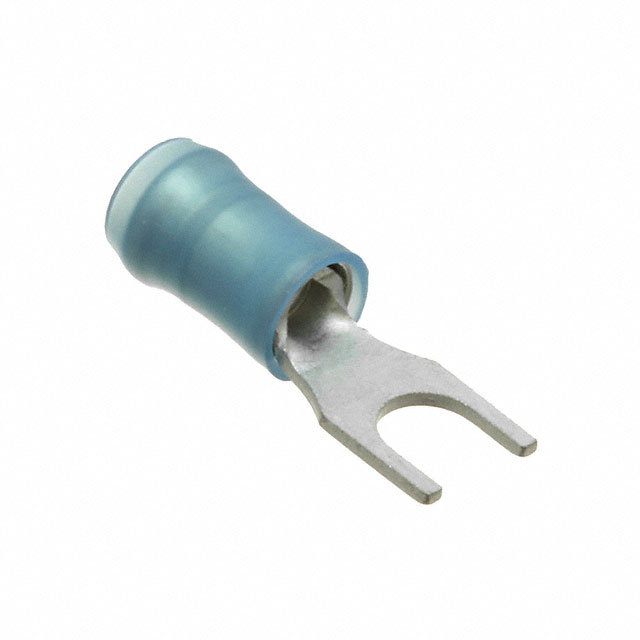

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Search across all available documentation for this part.

9-1377173-5

Active

TE Connectivity Raychem Cable Protection

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9-1377173-5

Color	Blue
Contact Finish	Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [Max] [diameter]	0.17 ", 4.32 mm
Insulation Diameter [Min] [diameter]	2.92 mm, 0.115 in
Length - Overall [x]	20.65 mm
Length - Overall [x]	0.813 in
Length - Ring Center to Termination	7.11 mm
Length - Ring Center to Termination	0.28 in
Length - Termination	0.404 "
Length - Termination	10.26 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.171 in
Tongue Inside Opening [x]	4.34 mm
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm

1377173 Series

Part	Length - Overall [x]	Length - Overall [x]	Insulation	Termination	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Contact Material	Length - Termination	Length - Termination	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Mounting Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Terminal Type	Color	Length - Termination	Length - Ring Center to Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Overall	Length - Overall	Insulation Diameter [Max] [diameter]	Length - Pin [x]	Length - Pin [x]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Pin Diameter [y]	Pin Diameter [y]	Pin Diameter [x]	Pin Diameter [x]	Width - Outer Edges	Number of Wire Entries	Insulation Diameter [Min]	Insulation Diameter [Max]
TE Connectivity Raychem Cable Protection 1-1377173-8	23.37 mm	0.92 "	Insulated	Crimp	0.14 in	0.105 in	3.56 mm	2.67 mm	0.375 in	9.53 mm	Serrated Termination	Copper	10.57 mm	0.416 in	7.92 mm	0.312 in	Free Hanging (In-Line)	0.171 in	4.34 mm	8 Stud	22 AWG	16 AWG	Poly-Vinyl Chloride (PVC)	Standard	Red
TE Connectivity Raychem Cable Protection 9-1377173-5	20.65 mm	0.813 in	Insulated	Crimp	0.17 " 4.32 mm	0.115 in 2.92 mm						Copper	0.404 "		7.11 mm		Free Hanging (In-Line)	0.171 in	4.34 mm	8 Stud			Nylon Polyamide (PA)	Standard	Blue	10.26 mm	0.28 in	0.25 "	6.35 mm	Tin
TE Connectivity Raychem Cable Protection 9-1377173-9			Insulated	Crimp	0.17 " 4.32 mm	0.115 in 2.92 mm			0.475 in	12.07 mm		Copper				0.437 "	Free Hanging (In-Line)	0.25 in	6.35 mm				Nylon Polyamide (PA)	Standard	Blue					Tin	0.25 Stud	11.1 mm	1.103 in	28.02 mm
TE Connectivity Raychem Cable Protection 4-1377173-5	20.65 mm	0.813 in	Insulated	Crimp	0.19 "	0.115 in		2.92 mm			Serrated Termination	Copper											Poly-Vinyl Chloride (PVC)		Blue					Tin					4.83 mm	6.71 mm	0.264 in
TE Connectivity Raychem Cable Protection 5-1377173-0	29.39 mm	1.157 in	Insulated	Crimp							Serrated Termination	Copper	17.6 mm	0.693 in							12 AWG	10 AWG	Poly-Vinyl Chloride (PVC)		Yellow					Tin						11.81 mm	0.465 in	0.15 "	6.4 mm	3.81 mm	0.252 "	0.031 in	0.8 mm	0.165 "	4.2 mm
TE Connectivity Raychem Cable Protection 3-1377173-7	33.2 mm	1.307 in	Insulated	Crimp							Serrated Termination	Copper	15.68 mm	0.617 in		0.44 in	Free Hanging (In-Line)	0.205 in	5.21 mm	M5 Stud	12 AWG	10 AWG	Poly-Vinyl Chloride (PVC)	Standard	Yellow			0.53 in		Tin		11.18 mm						0.15 "	6.4 mm	3.81 mm	0.252 "					13.46 mm
TE Connectivity Raychem Cable Protection 5-1377173-6			Fully Insulated	Crimp							Serrated Mating Area													Inline Individual Openings (Parallel)	Blue																						2
TE Connectivity Raychem Cable Protection 5-1377173-2			Fully Insulated	Crimp							Serrated Mating Area										22 AWG	16 AWG		Butt Splice Individual Openings Inline	Red																						2
TE Connectivity Raychem Cable Protection 4-1377173-0	25.83 mm	1.017 in	Insulated	Crimp					0.416 in		Serrated Termination	Copper	15.01 mm	0.591 in		0.25 in	Free Hanging (In-Line)	0.197 in	5 mm		12 AWG	10 AWG	Poly-Vinyl Chloride (PVC)	Flanged	Yellow					Tin	10 Stud	6.35 mm						0.15 "			0.25 "					10.57 mm		3.81 mm	6.35 mm
TE Connectivity Raychem Cable Protection 5-1377173-4			Fully Insulated	Crimp							Serrated Mating Area										12 AWG	10 AWG		Butt Splice Individual Openings Inline	Yellow																						2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.88
		10	$ 0.82
		25	$ 0.79
		50	$ 0.79
		100	$ 0.71
		300	$ 0.69
		500	$ 0.68

Description

General part information

1377173 Series

Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

No documents available
